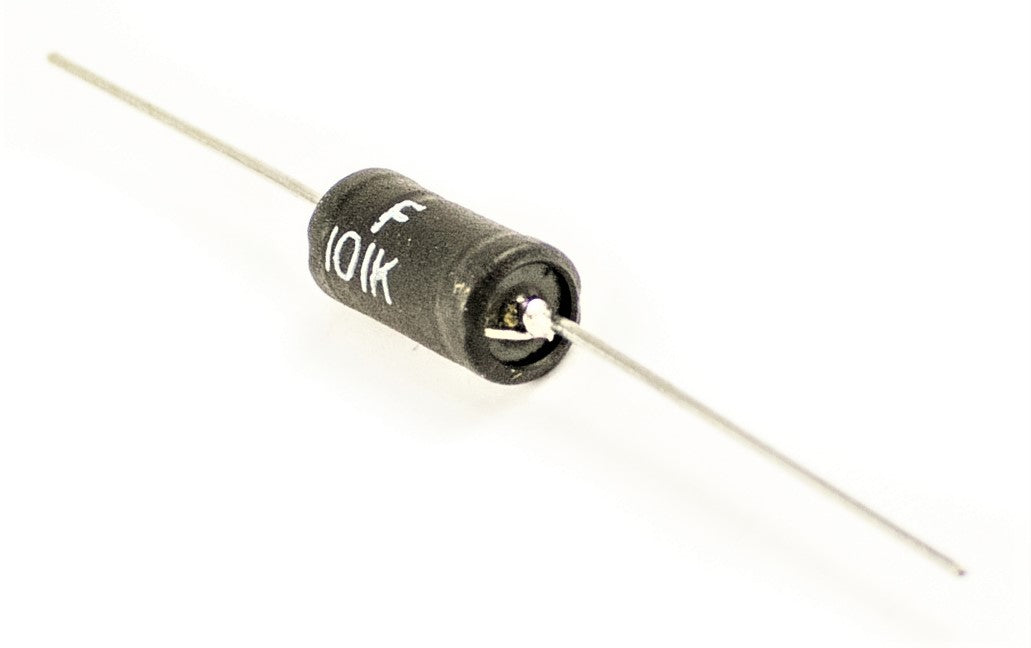

APC20 Series

$0.00

Features

  • Axial pre-tinned leads.
  • Protected with UL shrink tubing.
  • Non standard values and tolerances available.
  • High saturation core material used for high inductance and low DCR.

Electrical

  • Inductance Range: Measured at 1KHz with no DC current.
  • Tolerance: 10% over entire inductance range. Available in tighter tolerances.
  • Current Rating: Based on Inductance drop of < 10% of Initial value.
  • Operating Temp: -55°C to +125°C
  • Test Procedures: L measured on CH-100 @ 1KHz DCR measured on CH-301.
  • Rated Voltage: 600VAC Lead to Lead.

Physical

  • Packaging: 200 per bag. 500 per reel.
  • Marking: EIA Inductance Code.
Part Number

Specifications
  • Inductance: 3.9µH
  • Rated Current: 1.28A
  • DCR Max: 0.019Ω
  • Op Temp Range: -55ºC to +125ºC
  • Length: 0.600 / 15.24
  • Mounting Type: Through-Hole
  • Shielded: N
