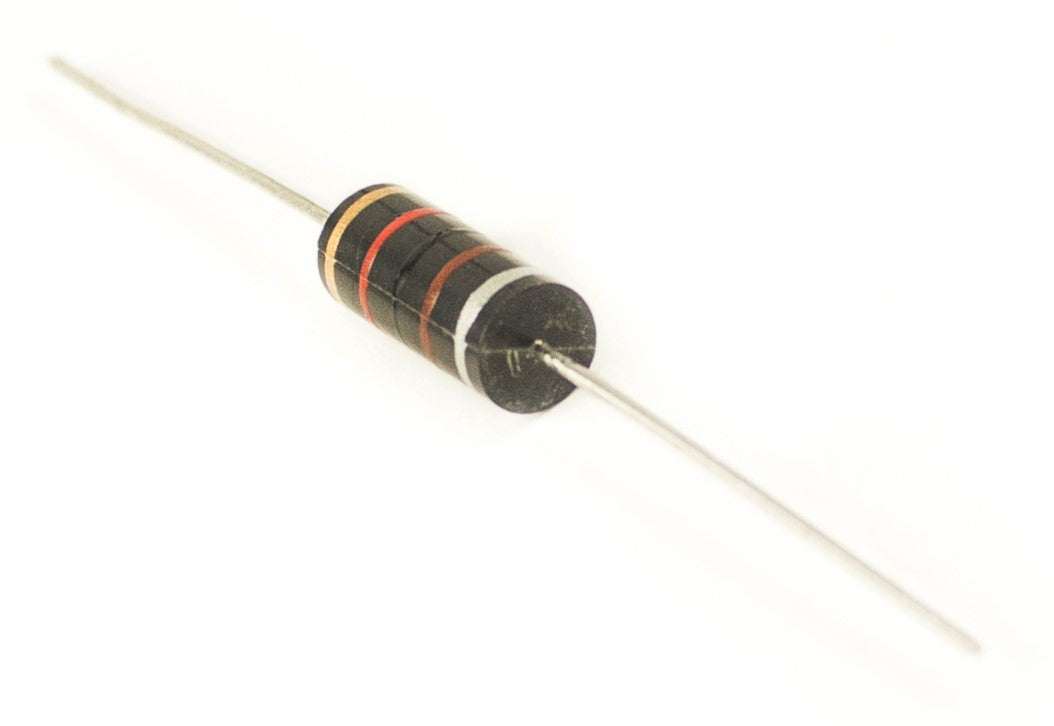

AM40 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Axial Leaded Molded Inductors
- Available on Tape and Reel or Ammo Pack for Auto placement
Electrical
- Inductance Range: 270 µH to 1000 µH.
- Tolerance: 10% over entire range Also available in tighter tolerances.
- Test Frequency for (L): .79Mhz
- Operating Temp.: -55°C to + 105°C.
- Current Rating : Based on a 10% drop in (L) from initial value.
- Part Temperature should not exceed 125ºC measurements @ 20ºC.
Test Equipment
- (L) & (Q): HP4342A & HP4285A
- DCR: CH301 Current Source and DCR Meter
Physical
- Packaging: 2500pcs per 13” Tape and Reel 500 per bag
- Marking: EIA Inductance Code
AM40 Series - AM40-271K-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 270µH
- Rated Current: 126mA
- DCR Max: 8.2Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 300µH
- Rated Current: 122mA
- DCR Max: 8.7Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 65
- Length: 8.7 / 122
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 330µH
- Rated Current: 120mA
- DCR Max: 9.1Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 360µH
- Rated Current: 115mA
- DCR Max: 9.6Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 390µH
- Rated Current: 114mA
- DCR Max: 10Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 430µH
- Rated Current: 111mA
- DCR Max: 10.6Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 470µH
- Rated Current: 108mA
- DCR Max: 11Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 500µH
- Rated Current: 106mA
- DCR Max: 11.3Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 510µH
- Rated Current: 105mA
- DCR Max: 11.6Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 560µH
- Rated Current: 104mA
- DCR Max: 12.3Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 65
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 620µH
- Rated Current: 101mA
- DCR Max: 13Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 680µH
- Rated Current: 97mA
- DCR Max: 13.7Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 750µH
- Rated Current: 95mA
- DCR Max: 14.4Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 820µH
- Rated Current: 92mA
- DCR Max: 15.1Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 910µH
- Rated Current: 91mA
- DCR Max: 15.8Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1000µH
- Rated Current: 88mA
- DCR Max: 16.5Ω
- Op Temp Range: -55°C to +105°C
- Q Min: 60
- Length: 0.440 / 11.18
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
