Allied Components | SKU:

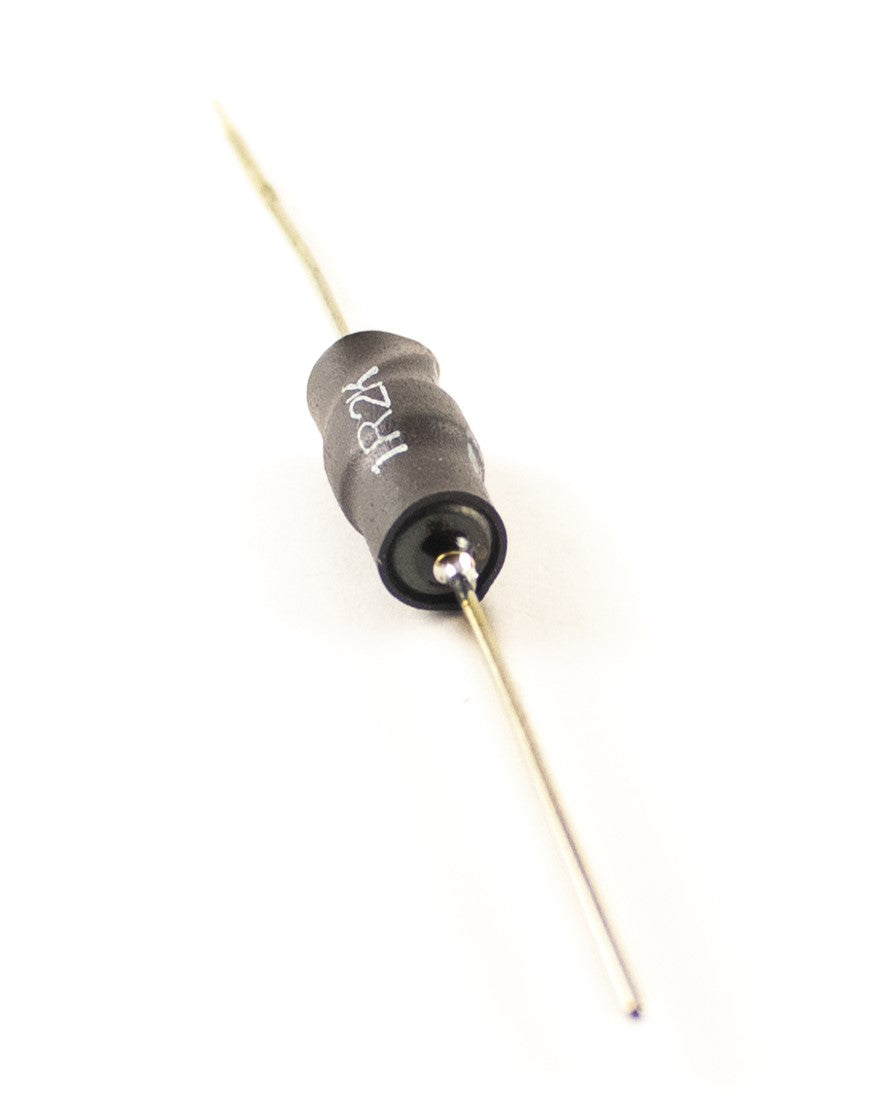

AHC30 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Axial pre-tinned leads
- Protected with Varnish or UL shrink tubing
- Non standard values and tolerances available
- High saturation core material used for high inductance and low DCR.
Electrical
- Inductance: Measured with HP4284A at specified frequency.
- Rated Current: Based on T=40ºC.
- Tolerance: 20% from .15µH to 1.0µH 10% from 1.2µH to 56µH.
Physical
- Marking (on Part): UL tubing marked with EIA code. Varnish parts not marked.
- Marking (on Reel): Manufactures Name, Part Number, Customers Part Number, Invoice Number, Lot or Date Code.
- Packaging: 100 pieces per tray.
AHC30 Series - AHC30-R15M-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 0.15µH
- Rated Current: 1850mA
- DCR Max: 0.018Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.18µH
- Rated Current: 1800mA
- DCR Max: 0.022Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.22µH
- Rated Current: 1740mA
- DCR Max: 0.025Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.27µH
- Rated Current: 1680mA
- DCR Max: 0.029Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.33µH
- Rated Current: 1610mA
- DCR Max: 0.032Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.39µH
- Rated Current: 1540mA
- DCR Max: 0.035Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.47µH
- Rated Current: 1430mA
- DCR Max: 0.039Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.56µH
- Rated Current: 1320mA
- DCR Max: 0.049Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.68µH
- Rated Current: 1200mA
- DCR Max: 0.078Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 0.82µH
- Rated Current: 1130mA
- DCR Max: 0.09Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1µH
- Rated Current: 1020mA
- DCR Max: 0.105Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.2µH
- Rated Current: 1580mA
- DCR Max: 0.063Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.5µH
- Rated Current: 1500mA
- DCR Max: 0.071Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.8µH
- Rated Current: 1450mA
- DCR Max: 0.078Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2.2µH
- Rated Current: 1380mA
- DCR Max: 0.088Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2.7µH
- Rated Current: 1320mA
- DCR Max: 0.098Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3.3µH
- Rated Current: 870mA
- DCR Max: 0.205Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3.9µH
- Rated Current: 840mA
- DCR Max: 0.225Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 4.7µH
- Rated Current: 800mA
- DCR Max: 0.25Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 5.6µH
- Rated Current: 750mA
- DCR Max: 0.28Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 6.8µH
- Rated Current: 710mA
- DCR Max: 0.31Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 8.2µH
- Rated Current: 680mA
- DCR Max: 0.35Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 10µH
- Rated Current: 640mA
- DCR Max: 0.39Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 12µH
- Rated Current: 450mA
- DCR Max: 0.67Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 65
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 15µH
- Rated Current: 430mA
- DCR Max: 0.76Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 65
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 18µH
- Rated Current: 410mA
- DCR Max: 0.85Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 22µH
- Rated Current: 390mA
- DCR Max: 0.96Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 27µH
- Rated Current: 360mA
- DCR Max: 1.1Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 70
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 33µH
- Rated Current: 345mA
- DCR Max: 1.24Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 65
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 39µH
- Rated Current: 330mA
- DCR Max: 1.37Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 65
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 47µH
- Rated Current: 315mA
- DCR Max: 1.65Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 60
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 56µH
- Rated Current: 300mA
- DCR Max: 1.95Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 55
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
