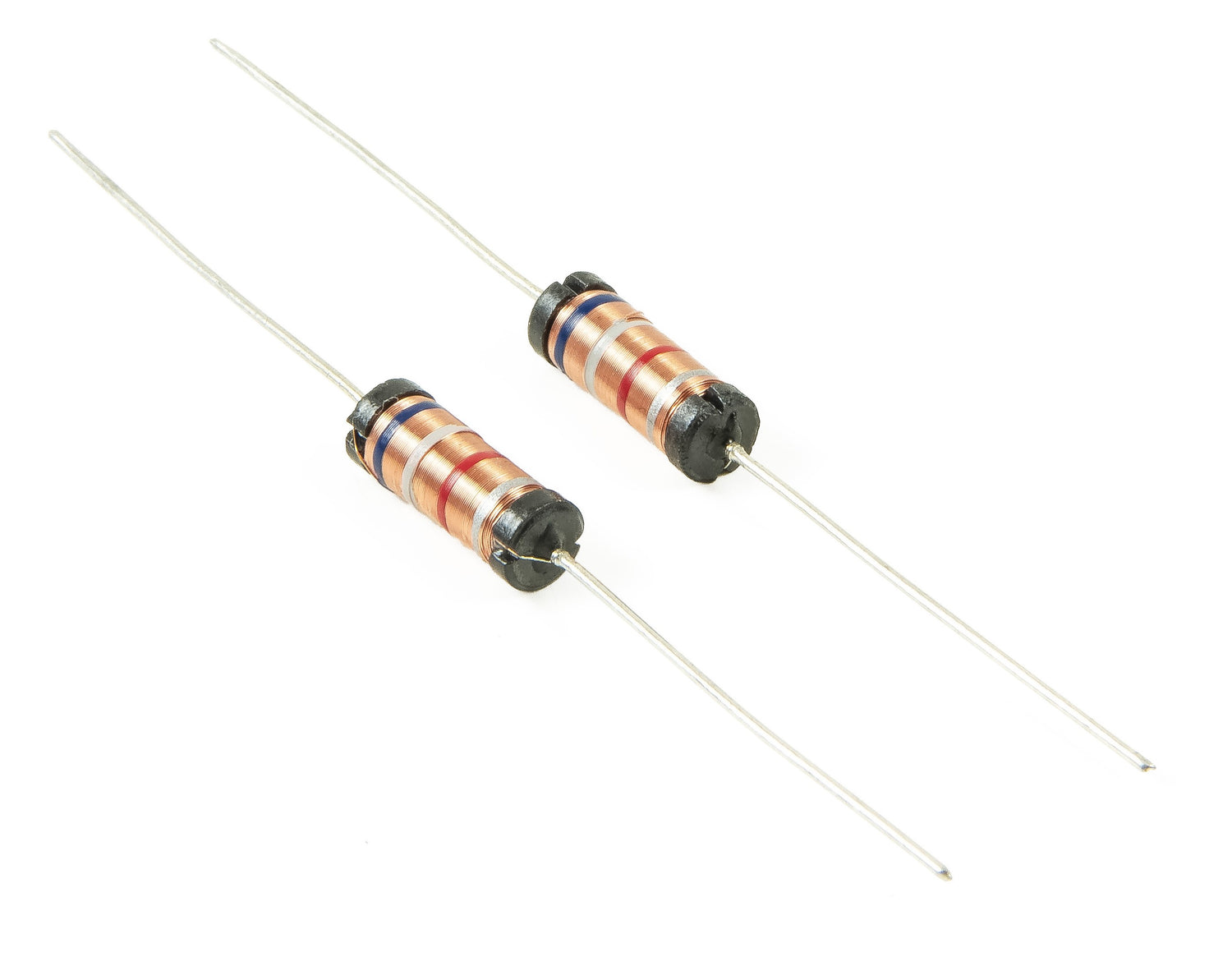

AE90 Series

$0.00

Features

  • High Current Capacity
  • Expanded operating temp range
  • Low DC Resistance
  • Available on tape and Reel or Ammo Pack for Auto placement

Electrical

  • Inductance Range: 10µh to 100,000µh
  • Tolerance: K=10%, J=5%
    Available in tighter tolerances
  • Test Frequency for (L): 10uh @ 1Mhz
    12uh to 4700uh @ 100Khz
    5600uh to 100,000uh @ 10Khz
  • Operating Temp: -55ºC ~ +125ºC
  • Current Rating: Based on a 40% temp rise at 85ºC ambient.
  • Part temperature should not exceed 125ºC Measurements @ 20ºC

Test Equipment

  • (L) & (Q): HP 4284A LCR meter or equivalent
  • DCR: HP4263B Current Source and DCR Meter
  • SRF: HP4191A
  • IDC: 11021 Current Source and DCR Meter

Physical

  • Packaging: 1000 pieces per 13” Tape and Reel
  • Marking: 4 Band EIA Color Code
Part Number

Specifications
  • Inductance: 10µH
  • Rated Current: 2900mA
  • DCR Max: 0.09Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 55
  • Height: 0.630 / 16.00
  • Mounting Type: Through-Hole
  • Shielded: N
    • Download Datasheet
