Allied Components | SKU:

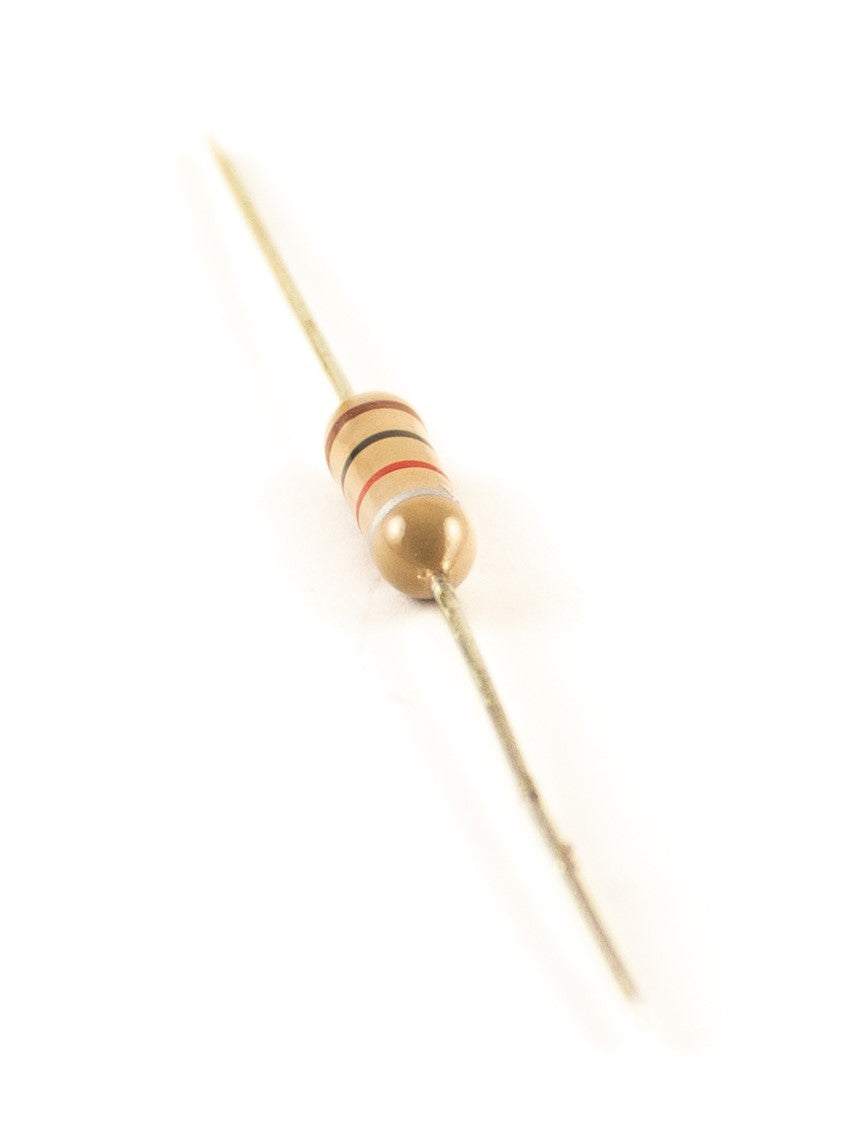

AE80 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- High Current Capacity
- Expanded operating temp range
- Low DC Resistance
- Available on Tape and Reel, Ammo Pack, or Bulk.
Electrical
- Inductance Range: 0.7μh to 10,000μh
-
Tolerance: K=10%, M=20%
Available in tighter tolerances. -
Test Frequency for (L): 0.7uh @ 1Mhz
1.0uh to 1000uh @ 1Khz
1200uh to 10000uh @ 1Khz - Operating Temp: -55ºC ~ +125ºC
- Current Rating: Based on a 40% temp rise at 85ºC ambient.
- Incremental Current: The current at which the inductance will decrease by a maximum of 5% from its initial value with no current.
Test Equipment
- (L): HP 4284A LCR Meter or equivalent
- (Q): HP4342 Q Meter
- DCR: HP4263B Current Source and DCR Meter
- IDC: 11021 Current Source and DCR Meter
Physical
- Packaging: 3K per Tape and Reel, Ammo Pack, Bulk 500/bag.
- Marking: 4 Band EIA Color Code
AE80 Series - AE80-R70M-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 0.7µH
- Rated Current: 7A
- DCR Max: 0.01Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1µH
- Rated Current: 5.5A
- DCR Max: 0.013Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.2µH
- Rated Current: 4.69A
- DCR Max: 0.018Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.5µH
- Rated Current: 4.45A
- DCR Max: 0.02Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1.8µH
- Rated Current: 4.34A
- DCR Max: 0.021Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2.2µH
- Rated Current: 3.7A
- DCR Max: 0.029Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2.7µH
- Rated Current: 3.41A
- DCR Max: 0.034Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3.3µH
- Rated Current: 3.23A
- DCR Max: 0.038Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3.9µH
- Rated Current: 3.07A
- DCR Max: 0.042Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 4.7µH
- Rated Current: 2.9A
- DCR Max: 0.047Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 5.6µH
- Rated Current: 2.79A
- DCR Max: 0.051Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 6.8µH
- Rated Current: 2.61A
- DCR Max: 0.058Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 8.2µH
- Rated Current: 2.51A
- DCR Max: 0.063Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 20
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 10µH
- Rated Current: 2.36A
- DCR Max: 0.071Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 12µH
- Rated Current: 2.24A
- DCR Max: 0.084Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 15µH
- Rated Current: 2.11A
- DCR Max: 0.089Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 18µH
- Rated Current: 1.82A
- DCR Max: 0.119Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 22µH
- Rated Current: 1.61A
- DCR Max: 0.152Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 27µH
- Rated Current: 1.48A
- DCR Max: 0.179Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 33µH
- Rated Current: 1.33A
- DCR Max: 0.222Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 39µH
- Rated Current: 1.12A
- DCR Max: 0.315Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 47µH
- Rated Current: 1.04A
- DCR Max: 0.362Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 56µH
- Rated Current: 1A
- DCR Max: 0.397Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 68µH
- Rated Current: 0.97A
- DCR Max: 0.418Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 82µH
- Rated Current: 0.81A
- DCR Max: 0.604Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 25
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 100µH
- Rated Current: 0.76A
- DCR Max: 0.672Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 120µH
- Rated Current: 0.73A
- DCR Max: 0.735Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 150µH
- Rated Current: 0.63A
- DCR Max: 0.998Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 180µH
- Rated Current: 0.53A
- DCR Max: 1.37Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 220µH
- Rated Current: 0.5A
- DCR Max: 1.58Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 270µH
- Rated Current: 0.47A
- DCR Max: 1.77Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 330µH
- Rated Current: 0.39A
- DCR Max: 2.51Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 390µH
- Rated Current: 0.38A
- DCR Max: 2.73Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 470µH
- Rated Current: 0.35A
- DCR Max: 3.25Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 560µH
- Rated Current: 0.33A
- DCR Max: 3.75Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 680µH
- Rated Current: 0.3A
- DCR Max: 4.31Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 820µH
- Rated Current: 0.26A
- DCR Max: 6.04Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 35
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1000µH
- Rated Current: 0.24A
- DCR Max: 6.9Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1200µH
- Rated Current: 0.15A
- DCR Max: 9Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1500µH
- Rated Current: 0.13A
- DCR Max: 12Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 1800µH
- Rated Current: 0.12A
- DCR Max: 14Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2200µH
- Rated Current: 0.1A
- DCR Max: 19Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 2700µH
- Rated Current: 0.09A
- DCR Max: 25Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3300µH
- Rated Current: 0.083A
- DCR Max: 29Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 3900µH
- Rated Current: 0.077A
- DCR Max: 34Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 4700µH
- Rated Current: 0.074A
- DCR Max: 37Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 5600µH
- Rated Current: 0.063A
- DCR Max: 50Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 6800µH
- Rated Current: 0.059A
- DCR Max: 58Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 8200µH
- Rated Current: 0.054A
- DCR Max: 68Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
- Inductance: 10000µH
- Rated Current: 0.052A
- DCR Max: 75Ω
- Op Temp Range: -55°C to +125°C
- Q Min: 40
- Length: 0.500 / 12.70
- Mounting Type: Through-Hole
- Shielded: N Download Datasheet
