Allied Components | SKU:

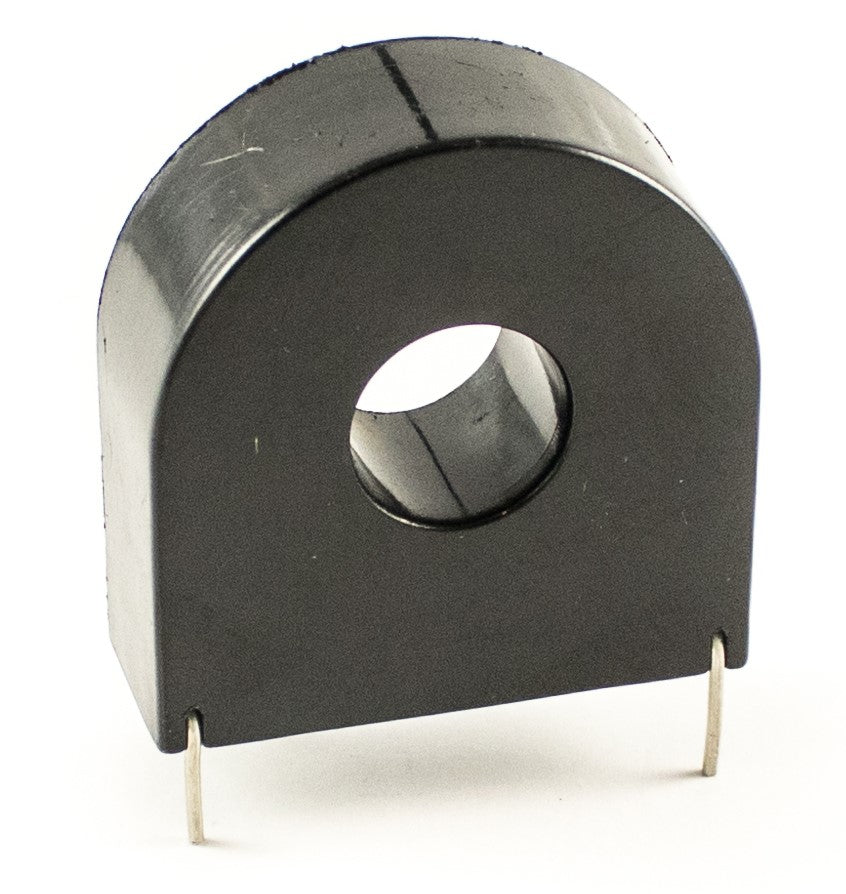

ACT13 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Mini-Precision Current Transformer
- Good linearity over the entire range
- Ideal for Current Measurement, Monitoring & Protection Applications
- Standard Input Current 30-120A
- Frequency 50Hz-400Hz
- Custom designs available
- Standard accuracy 0.1%, 0.2%, 0.5%
- ANSI C57.13 and IEC60044-1 Standards
- Constructed using UL approved materials
Electrical
- HI-Pot: 4KV/1MA/1MIN
- Insulation Resistance: 500mΩ @ 500VDC
- Operating Temp: - 40ºC ~ +85ºC
- Storage Temp: -45ºC ~ +90ºC
Physical
- Weight: Approximately 50g
ACT13 Series - ACT13-30-012-_-100 is backordered and will ship as soon as it is back in stock.
