Allied Components

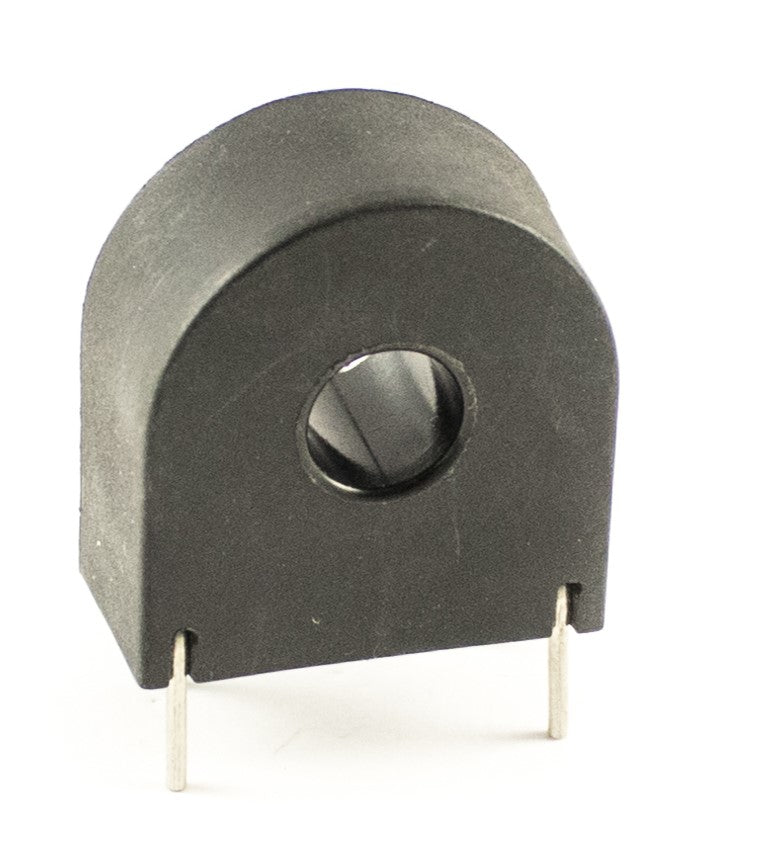

ACT07-4302 Series

$0.00
  • Mini-Precision Current Transformer
  • Good Linearity over the entire range
  • Ideal for Current Measurement, Monitoring & Protection Applications
  • Operating Temp: -40ºC to +85ºC
  • Storage Temp: -45ºC to +90ºC
  • Dieletric Withstanding Voltage (Hi-pot): 4KVrms/1mA/1min
  • Impulse Withstand Voltage: 5KV Peak
  • Insulation Presistance: DC500V/100MΩ min
  • Made with UL Approved Materials
Part Number

Specifications
  • DCR Max: 148.5Ω
  • Op Temp Range: -40°C to +85°C
  • Length: 0.925 / 23.5
  • Width: 0.453 / 11.5
  • Height: 0.984 / 25.0
  • Output Current: 4mA
  • Primary Input Current: 10A
  • Turns Ratio: 1 : 2500
  • Mounting Type: Through-Hole
  • Function: Transformer (Secondary Only)
    • Download Datasheet
