Allied Components

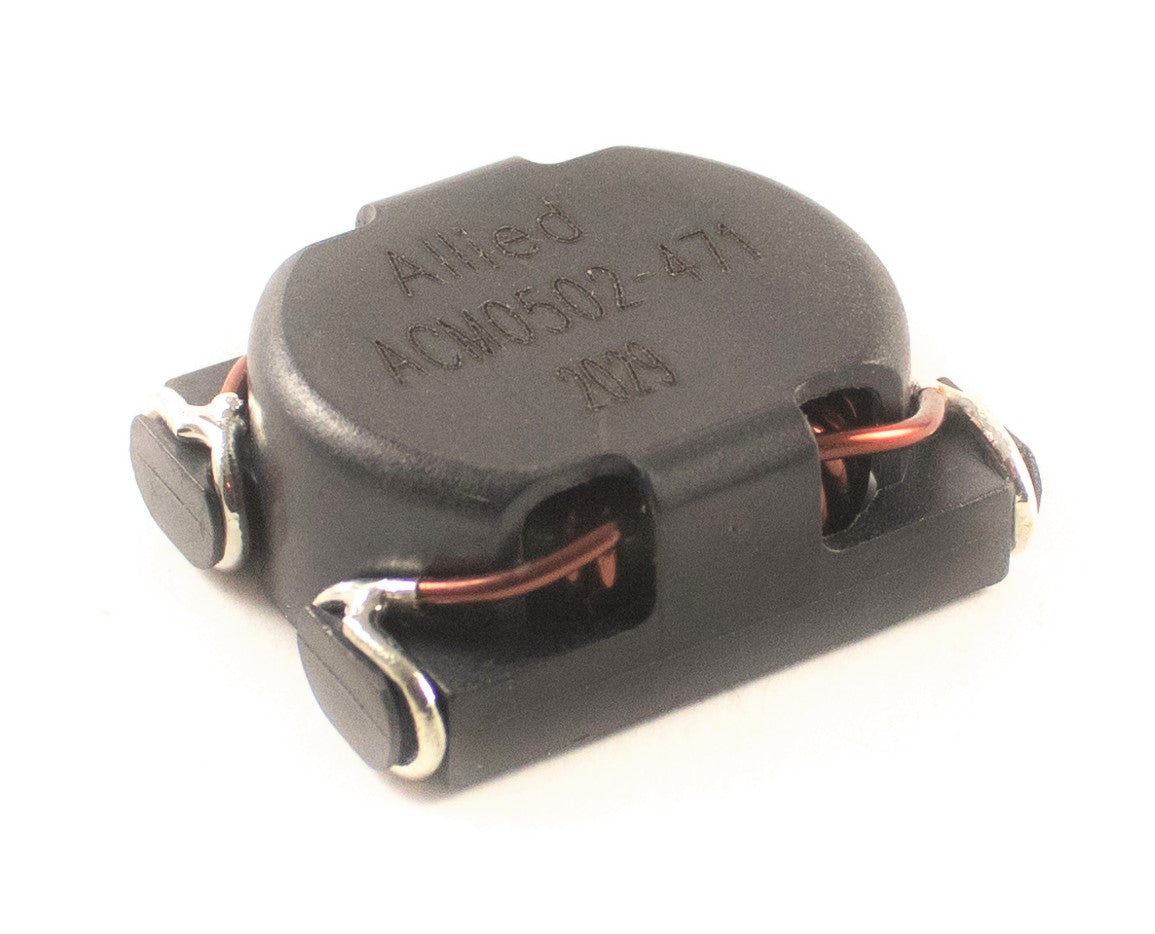

ACM0502-471 Series

$0.00
  • SMD Common mode choke for power application
  • Operating temperature range: -40°C to +120°C
Part Number

Specifications
  • Rated Current: 14A
  • DCR Max: 8mΩ
  • Op Temp Range: -40°C to +120°C
  • Length: 1.220 / 31.0
  • Width: 1.024 / 26.0
  • Height: .500 / 12.7
  • Inductance: 470µH
  • Mounting Type: Surface Mount
  • Function: Common Mode Choke
    • Download Datasheet
