Allied Components

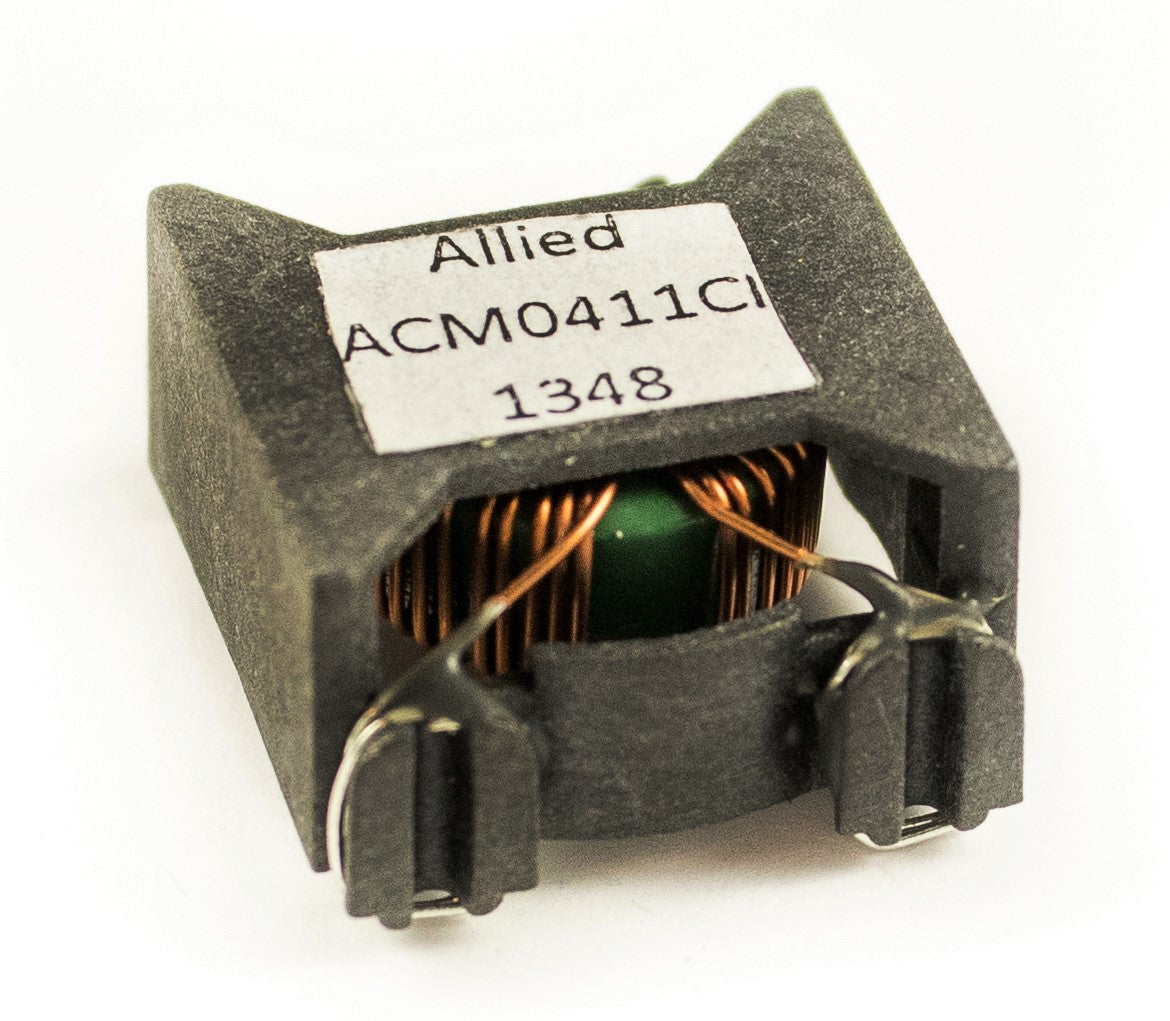

ACM0411CI Series

$0.00
  • Common mode choke for power application
  • High Impedance to minimize common mode noise
  • Excellent EMI performance
  • Industrial temperature range: -40ºC to +130ºC
Part Number

Specifications
  • Rated Current: 2.8A
  • DCR Max: 80mΩ
  • Op Temp Range: -40°C to +130°C
  • Length: 0.770 / 19.560
  • Width: 0.670 / 17.020
  • Height: 0.390 / 9.910
  • Inductance: 1.47µH
  • Mounting Type: Surface Mount
  • Function: Common Mode Choke
    • Download Datasheet
