Allied Components

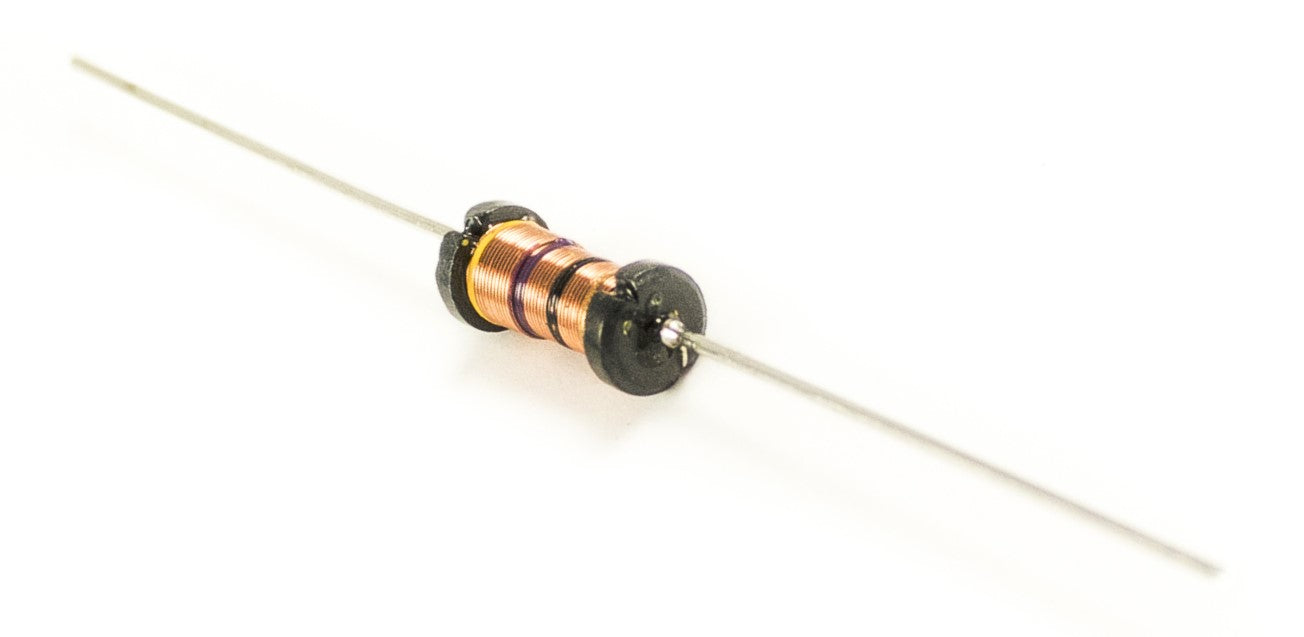

AC80 Series

$0.00

Features

  • High Current Capacity
  • Expanded operating temp range
  • Low DC Resistance
  • Available on tape and Reel or Ammo Pack for Auto placement.

Electrical

  • Inductance Range: 1.0µh to 10,000µh
  • Tolerance: 1.0µh to 22µh 10% 33µh to 100,000µh 5% Available in tighter tolerances
  • Test Frequency for (L): 1.0µh to 6.8µh @ 1Mhz 10µh to 4700µh @ 100Khz 6800µh to 100,000µh @ 10Khz
  • Operating Temp.: -55ºC ~ +125ºC
  • Current Rating: Based on a 10% drop in (L) from initial value.
  • Part temperature should not exceed 125ºC Measurements @ 20ºC

Test Equipment

  • (L) & (Q): HP 4284A LCR meter or equivalent
  • DCR: HP4263B Current Source and DCR Meter
  • SRF: HP4191A
  • IDC: 11021 Current Source and DCR Meter

Physical

  • Packaging: 1500 pieces per 13” Tape and Reel. 1000 pieces per Ammo Pack.
  • Marking: 4 Band EIA Color Code
Part Number

Specifications
  • Inductance: 1µH
  • Rated Current: 2200mA
  • DCR Max: 0.08Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 40
  • Length: 0.583 / 14.81
  • Mounting Type: Through-Hole
  • Shielded: N
    • Download Datasheet
