Allied Components

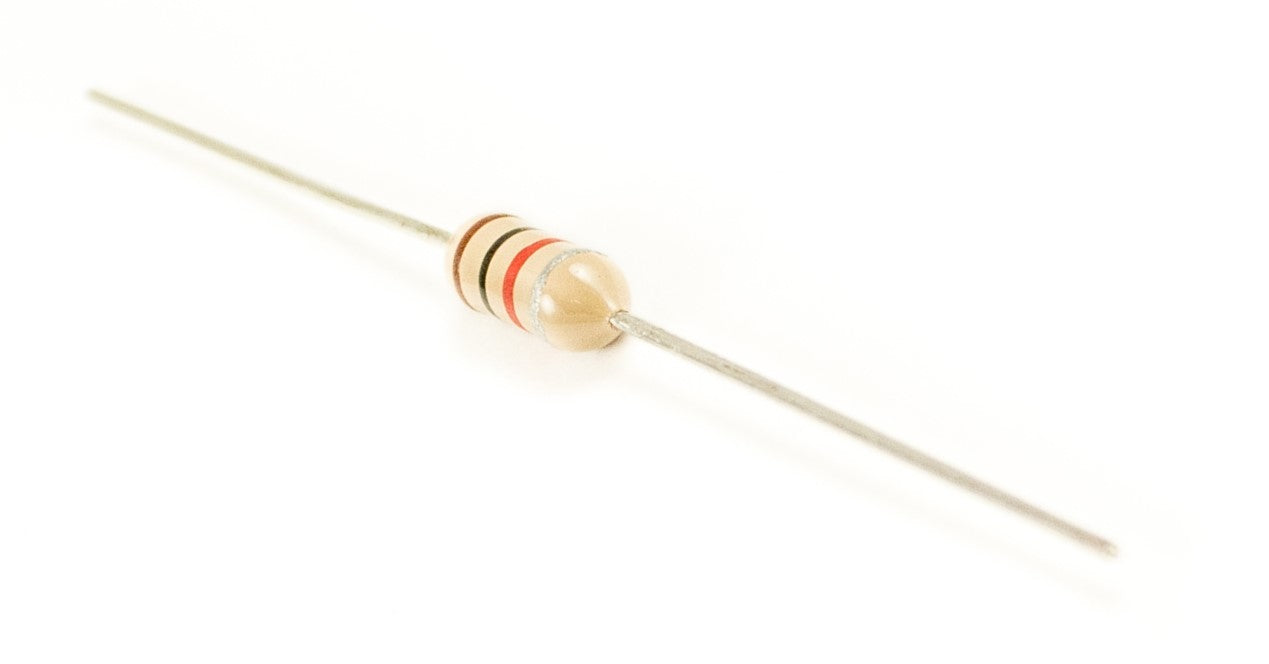

AC50 Series

$0.00

Features

  • Incorporation of a special lead wire configuration eliminating defects inherent in exisitng Axial leaded products such as open coil.
  • High Current Capacity
  • Expanded operating temp range
  • Low DC Resistance
  • Available on tape and Reel or Ammo Pack for Auto placement.

Electrical

  • Inductance Range: 1.0µh to 10,000µh
  • Tolerance: 10% over entire range. Available in tighter tolerances
  • Test Frequency: as noted in table
  • Operating Temp.: -55ºC ~ +125ºC
  • Current Rating: Based on a 10% drop in L from initial value.
  • Part temperature should not exceed 125ºC

Test Equipment

  • (L) & (Q): HP 4342A Q meter or equivalent
  • DCR: CH301 Current Source and DCR Meter
  • SRF: HP4191A
  • IDC: CH301 Current Source and DCR Meter

Physical

  • Packaging: 5000 pieces per 13” Tape and reel. 3000 pieces per Ammo Pack.
  • Marking: 4 band color code

For Tape and Reel packaging please add ”-TR” to the part number.

Part Number

Specifications
  • Inductance: 1µH
  • Rated Current: 1900mA
  • DCR Max: 0.07Ω
  • Op Temp Range: -55°C to +125°C
  • Q Min: 47
  • Length: 0.375 / 9.53
  • Mounting Type: Through-Hole
  • Shielded: N
