Allied Components | SKU:

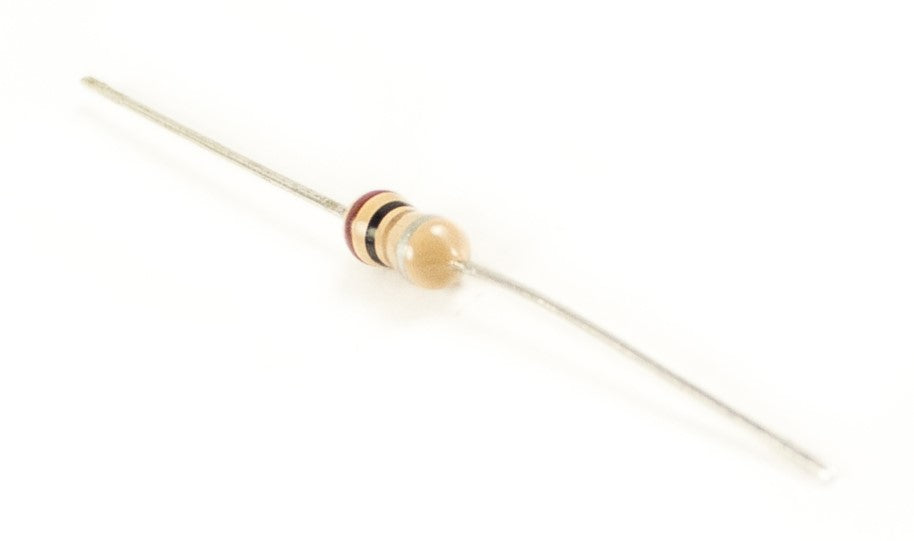

AC35 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Incorporation of a special lead wire structure entirely eliminates defects inherent in existing axial lead type products and prevents lead breakage.
- The special magnetic core structure permits the product to have reduced size, high "Q" and self resonant frequencies.
- Treated with epoxy resin coating for humidity resistance to ensure longer life.
- Heat resistant adhesives and special structural design for effective open circuit measurement.
Electrical
- Inductance Range: .10µh to 1000µh
- Tolerance: 10% over entire range. Tighter tolerances available
- Temp. Rise: 20°C
- Ambient Temp.: 80°C
- Rated Temp Range: -55° to +125°C
- Rated Current: Based on the inductance change within 10% of initial value.
Mechanical
- Terminal Tensile Strength: 0.9 kg min.
- Terminal Bending Strength: .3 kg min.
Physical
- Marking (on reel): Manufacturers name, Part number, Quantity,
- Marking: 4 band color code
- Packaging: 3000 pcs per Ammo Pack. 5000 pcs per Tape and Reel.
