Allied Components

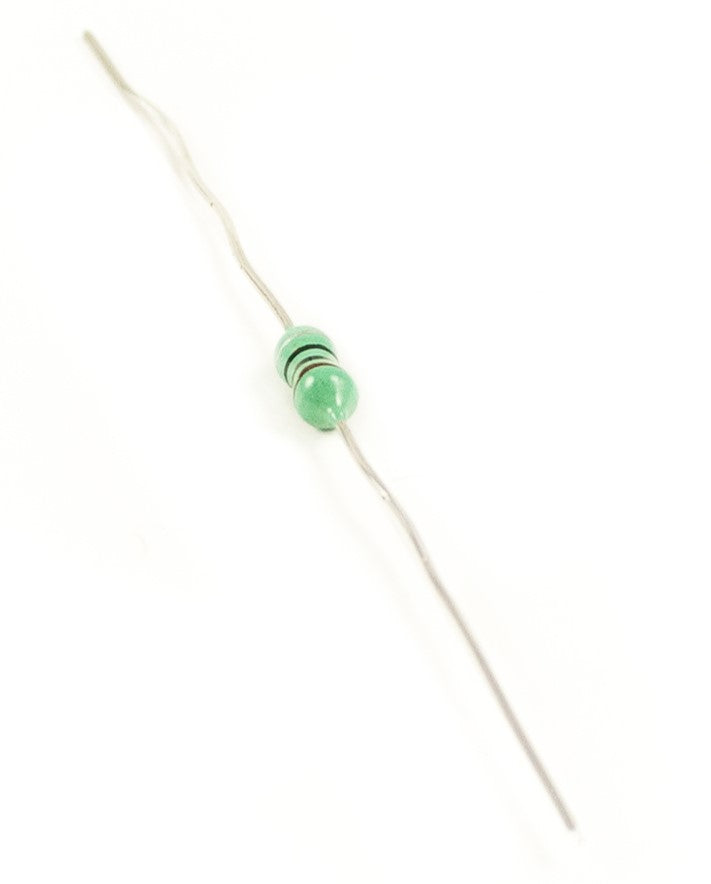

AC20 Series

$0.00

Features

  • Incorporation of a special lead wire structure entirely eliminates defects inherent in existing axial lead type products and prevents lead breakage.
  • The special magnetic core structure permits the product to have reduced size, high "Q" and self resonant frequencies.
  • Treated with epoxy resin coating for humidity resistance to ensure longer life.
  • Heat resistant adhesives and special structural design for effective open circuit measurement.

Electrical

  • Inductance Range: .10µh to 1000µh
  • Tolerance: 10% over entire range. Tighter tolerances available
  • Temp. Rise: 20°C
  • Ambient Temp.: 80°C
  • Rated Temp Range: -20 to 100°C
  • Dielectric Withstanding Voltage: 250 Volts R.M.S.
  • Rated Current: Based on temp rise.

Mechanical

  • Terminal Tensile Strength: 1.0 kg min.
  • Terminal Bending Strength: .3 kg min.

Physical

  • Marking (on reel): Manufacturers name, Part number, Quantity,
  • Marking: 4 band color code
  • Packaging: 3000 pieces per Ammo Pack.
Part Number

Specifications
  • Inductance: 0.1µH
  • Rated Current: 1400mA
  • DCR Max: 0.06Ω
  • Op Temp Range: -20°C to +100°C
  • Q Min: 40
  • Length: 0.276 / 7.01
  • Mounting Type: Through-Hole
  • Shielded: N
