Allied Components

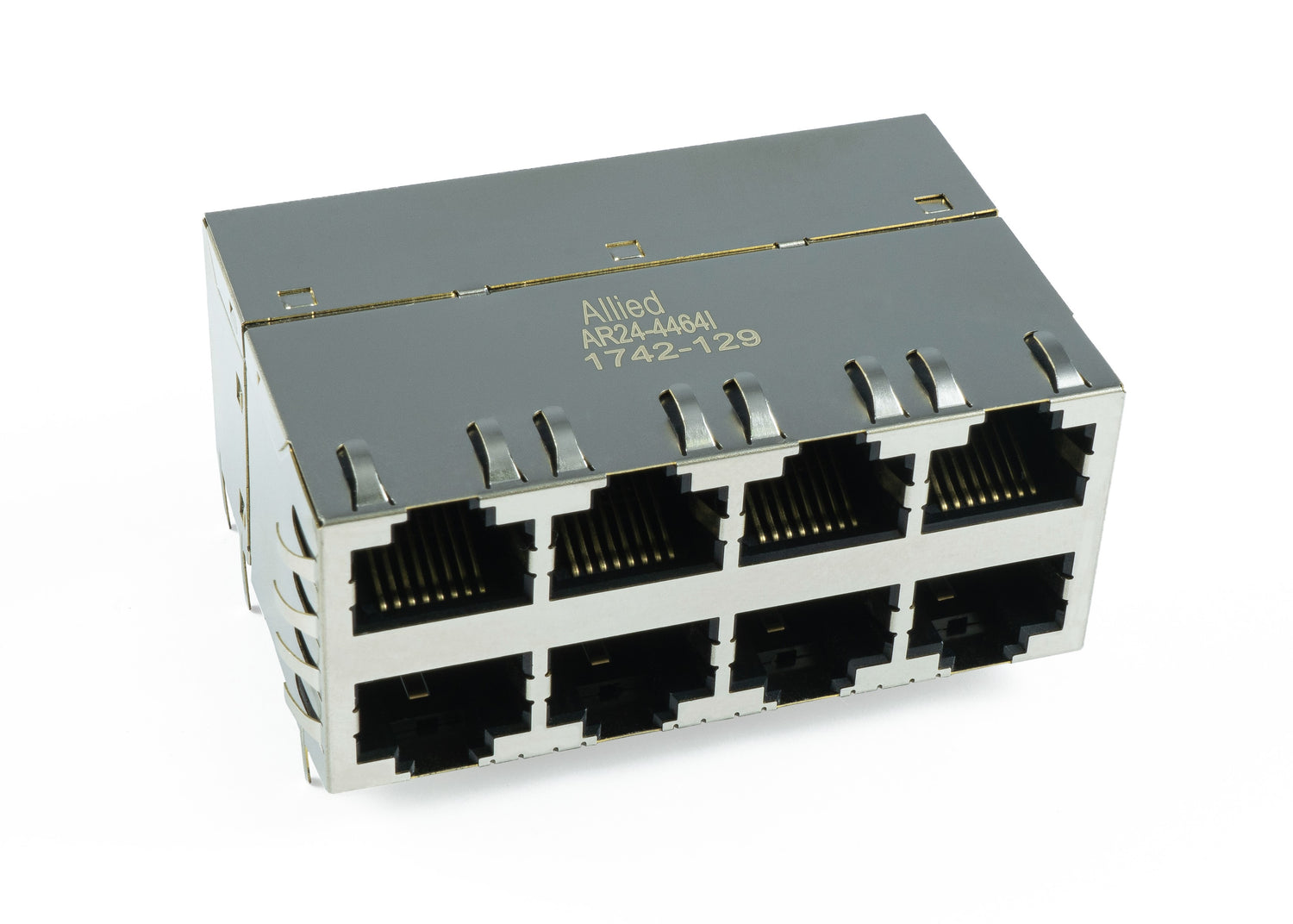

2 X 4 100/1000 Base T Gigabit / PoE+ / AR24-4464I

$0.00
  • 100/1000 Gigabit Base-T
  • For PoE+ IEEE 802.3at Applications
  • Balanced DC Current: 720mA Max @ 57V (Continous)
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68
  • Industrial Operating Temp: 40ºC to ±85ºC
  • The Part is recommended for wave soldering process, peak soldering temperature is 260ºC Max, 10 Sec Max
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: PoE+
  • Speed: 100/1000
  • Ports: 8 Port
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up & Down
  • LED: No
  • EMI Fingers: Yes
    • Download Datasheet
