Allied Components

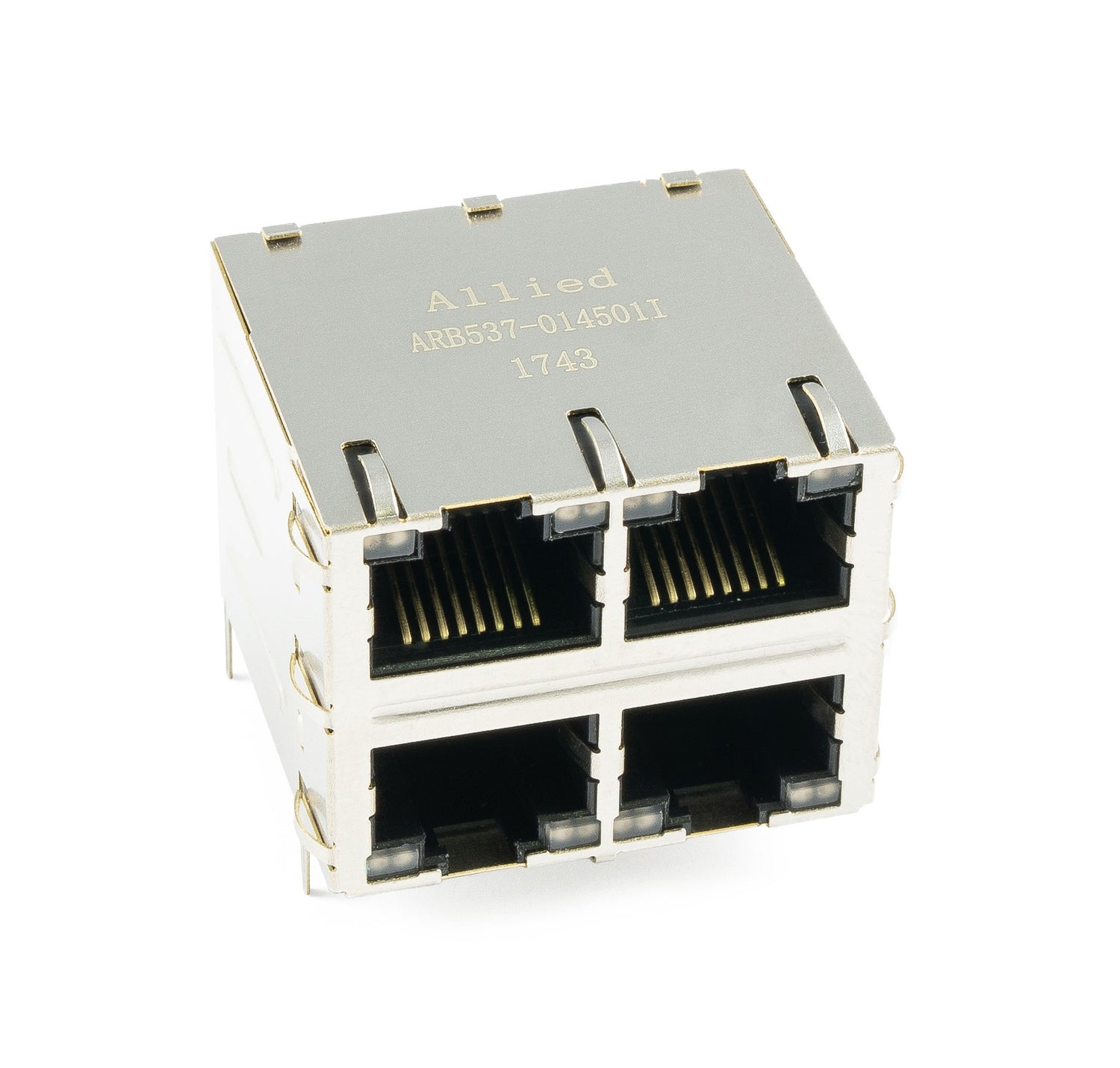

2 X 2 100/1000 Base T Gigabit / ARB537-014501I

$0.00
  • 100 / 1000 Base-T Ethernet Application
  • Meets IEEE 802.3 & ANSI X 3.263 standards
  • Impedance: 100OHMS
  • Transmit open circuit inductance
  • Always EU RoHS/ELV Compliant, wave solder capable to 265°C
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Operating Temperature: -40ºC to +85ºC
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Quad
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up & Down
  • LED: GY/GY
  • EMI Fingers: Yes
    • Download Datasheet
