Allied Components

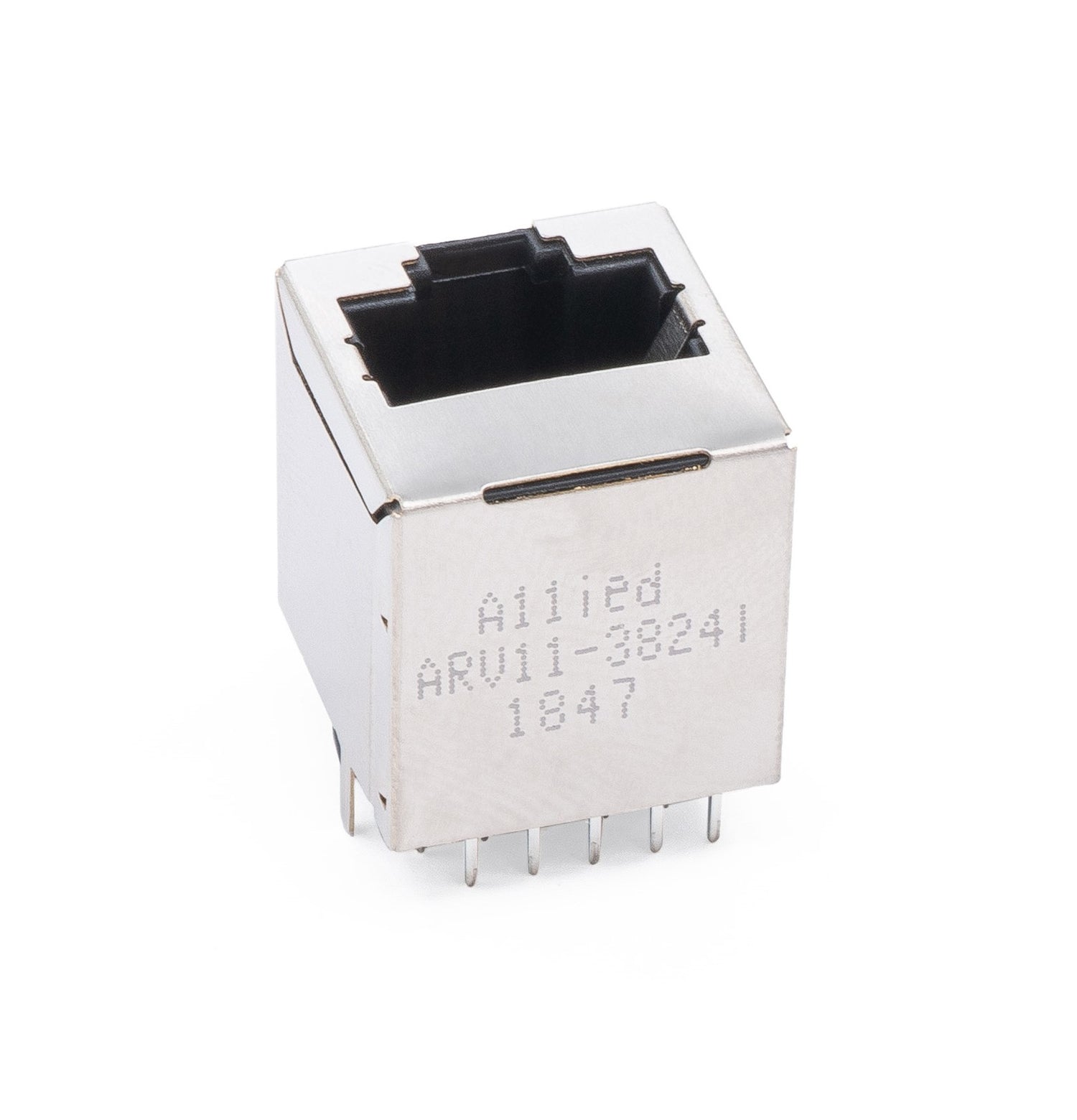

100/1000 Base T Gigabit / Vertical Mount / ARV11-3824I

$0.00
  • 100/1000 Base-T Gigabit for Ethernet Applications
  • Impedance: 100OHMS
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Operating Temp: -40ºC to +85ºC
  • Available in other Circuit Designs
  • Optional Gold Plating Thickness
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Vertical
  • Tab: N/A
  • LED: No
  • EMI Fingers: No
    • Download Datasheet
