Allied Components

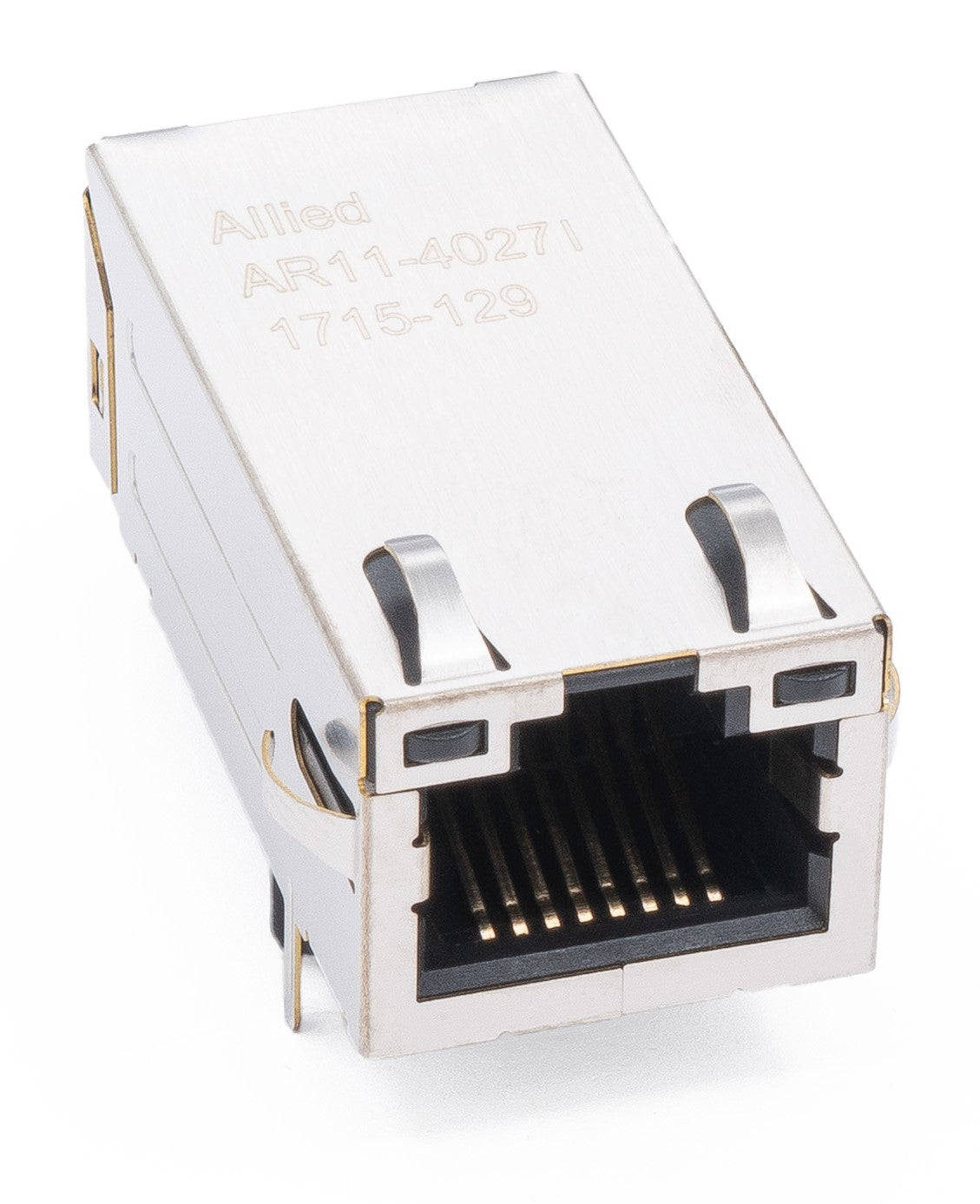

100/1000 Base T Gigabit / PoE+ / AR11-4027I

$0.00
  • 100/1000 Gigabit
  • For PoE+ applications. Compliant with IEEE802.3at
  • Balanced DC Current: 720mA Max @ 570 VDC continous 1.2A Max @ 57 VDC for 200 milliseconds
  • Transmit open circuit inductance (OCL): 350µH (MIN) @ 100KHz,0.1Vrms with 8mA DC Bias
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Temp: -40ºC to +85ºC
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: PoE+
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up
  • LED: OG/Y
  • EMI Fingers: Yes
    • Download Datasheet
