Allied Components

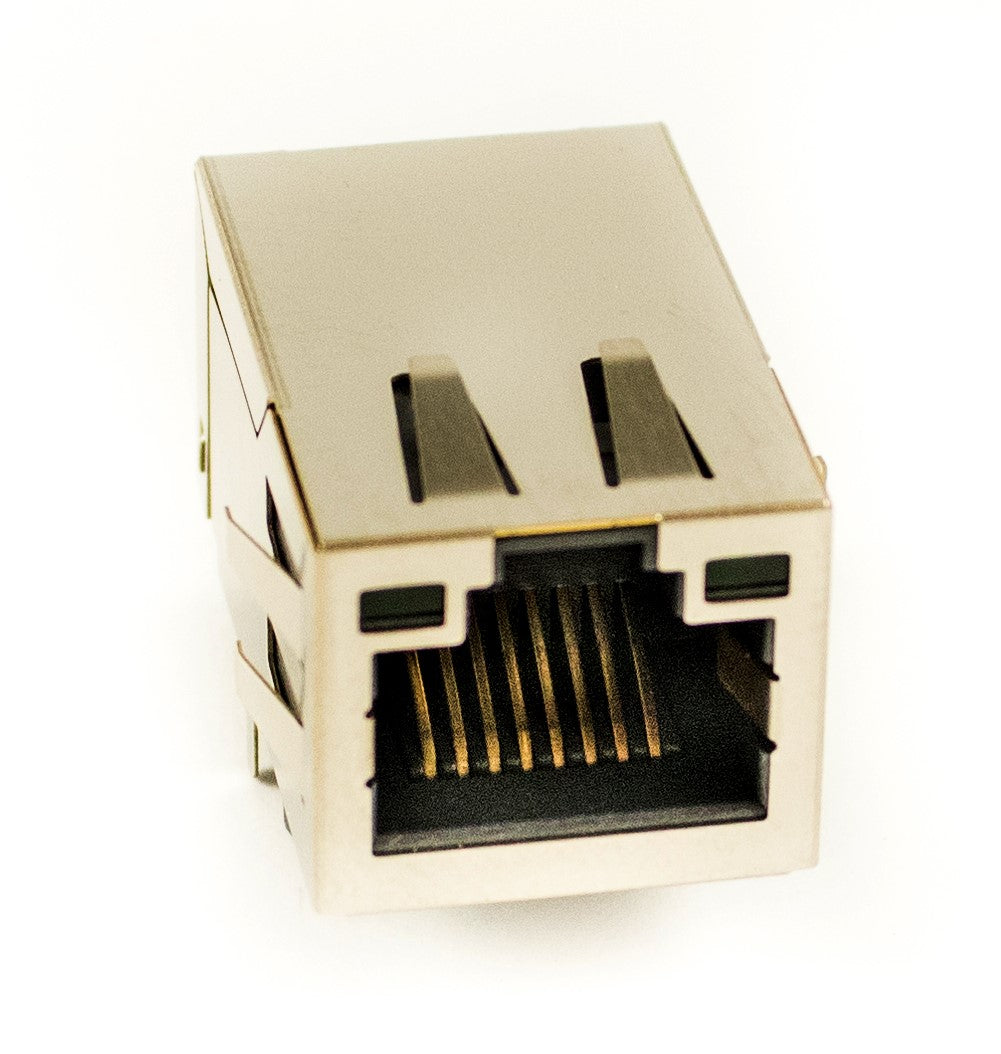

100/1000 Base T Gigabit / AR11-4381IR

$0.00
  • 100/1000 Base-T, Gigabit for LAN and other Ethernet Applications
  • Transmit open circuit inductance (OCL): 350µH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Standard Operating Temp: -40ºC to +85ºC
  • Suitable for Reflow Solder at 265ºC Max
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up
  • LED: G/G
  • EMI Fingers: Yes
    • Download Datasheet
