Allied Components

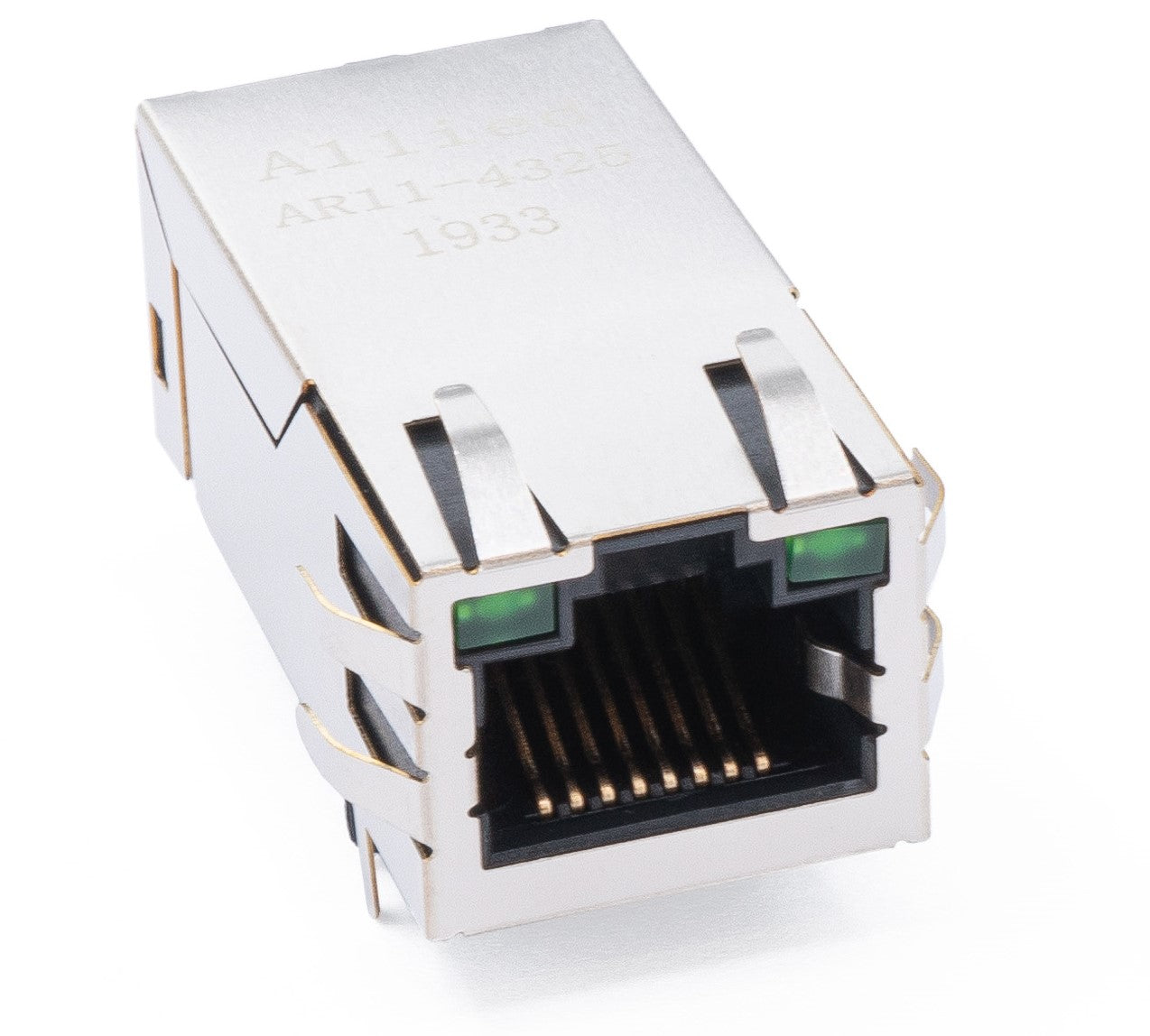

100/1000 Base T Gigabit / AR11-4325

$0.00
  • 100/1000 Base-T for LAN and other Ethernet Applications
  • Designed to meet IEEE802.3
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Standard Temp: 0ºC to +70ºC
Part Number

Specifications
  • Op Temp Range: 0°C to +70°C
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up
  • LED: G/G
  • EMI Fingers: Yes
    • Download Datasheet
