Allied Components

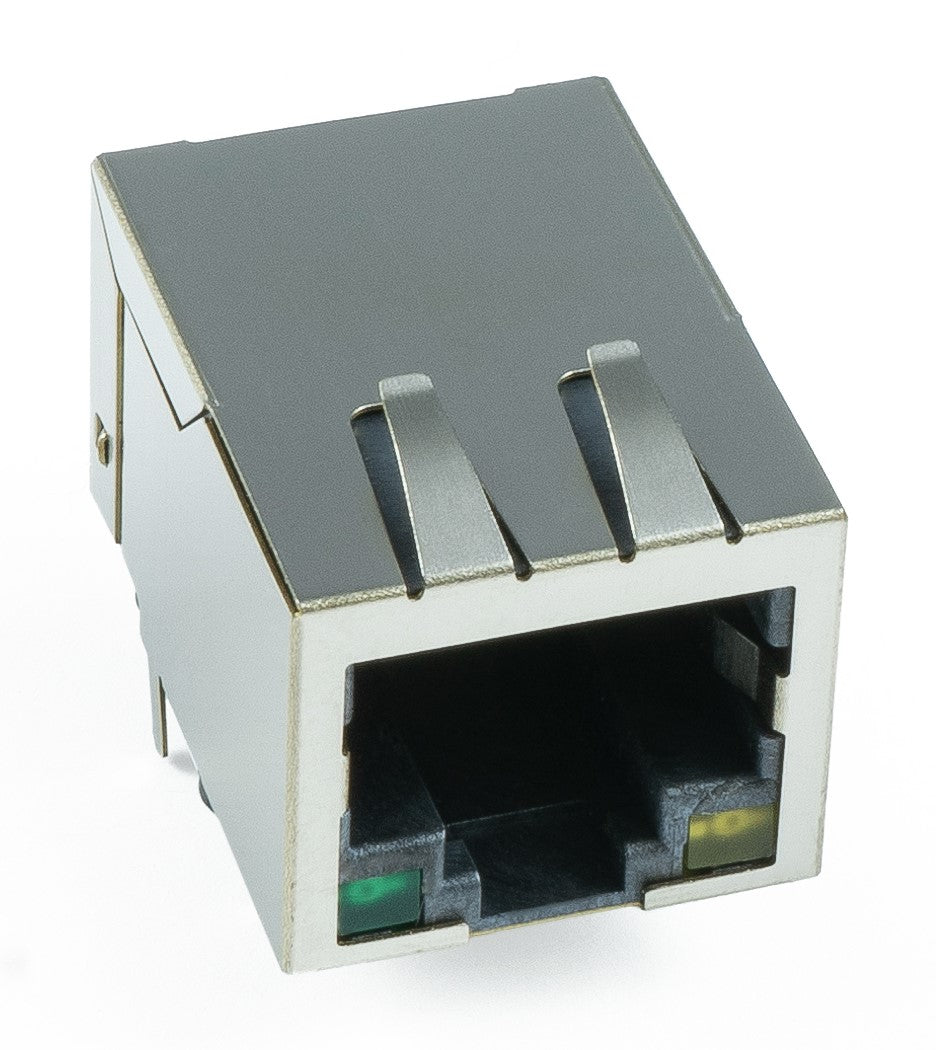

10/100 Base T / PoE / AR11-4310IR

$0.00
  • 10/100 Base-T for POE, LAN and other Ethernet Applications
  • Impedance: 100OHMS
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Temp: -40ºC to +85ºC
  • Contact Factory for Standard Operating Temp.
  • Available in other Circuit Designs
  • Suitable for IR Reflow
  • Other LED Patterns available
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Down
  • LED: G/Y
  • EMI Fingers: Yes
    • Download Datasheet
