Allied Components

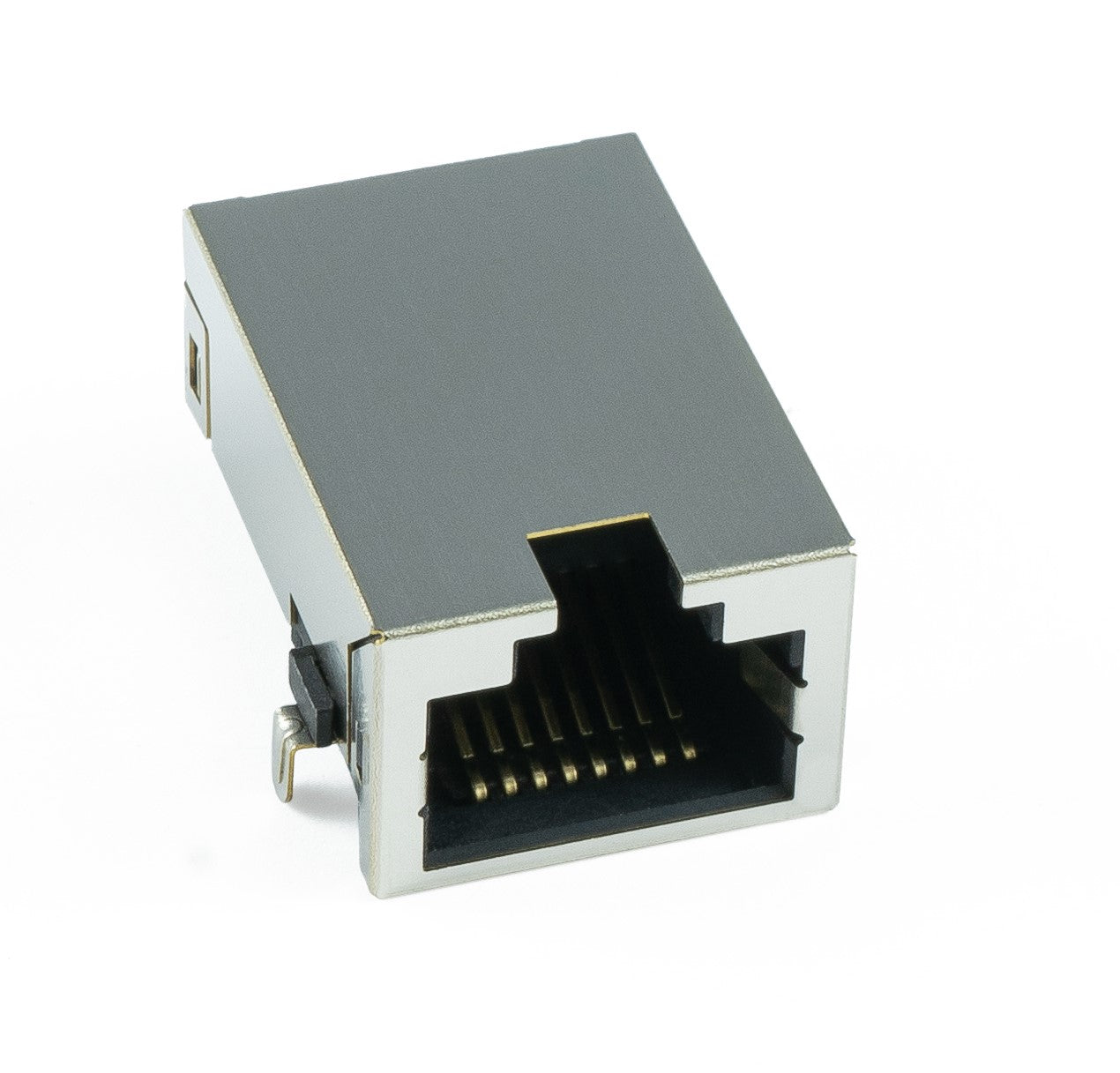

10/100 Base T / Low Profile / ARLP11-3647

$0.00
  • 10/100 Base-T Ethernet Application
  • Impedance: 100OHMS
  • Transmit open circuit inductance (OCL): (OCL): 350µH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Standard operating temp: 0ºC to +70ºC
  • Storage temperature range: -40ºC to +85ºC
  • Optional Gold Plating Thickness Available
Part Number

Specifications
  • Op Temp Range: 0°C to +70°C
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up
  • LED: No
  • EMI Fingers: No
    • Download Datasheet
