Allied Components

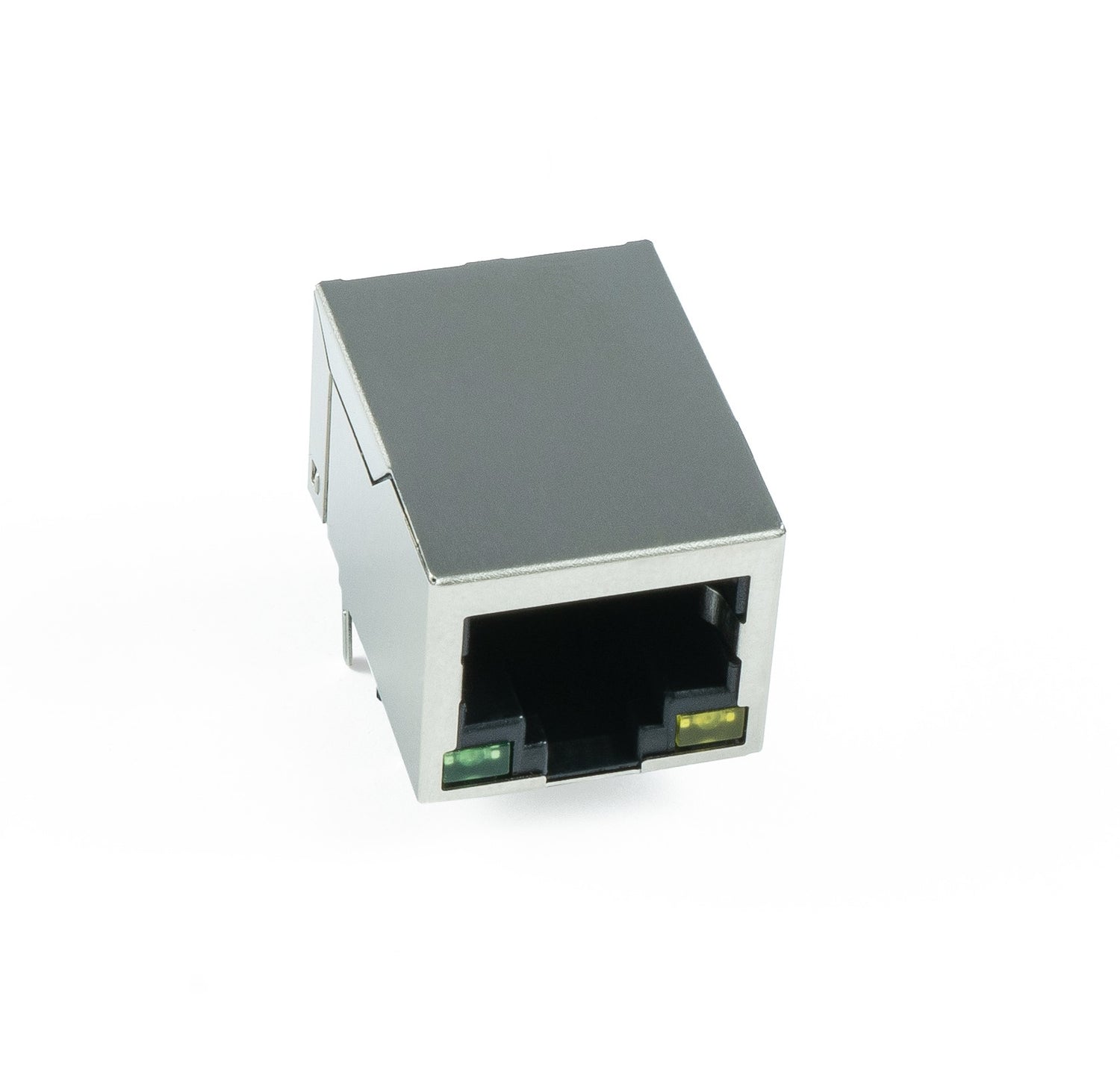

10/100 Base T / ARA009-0212-00S

$0.00
  • 10/100 Base-T Ethernet Application
  • Meets IEEE 802.3 & ANSI X 3.263 standards
  • Impedance: 100OHMS
  • Transmit open circuit inductance (OCL): 350µH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
  • Always EU RoHS/ELV Compliant, wave solder capable to 265°C
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Standard Operating Temperature: 0ºC to +70ºC
Part Number

Specifications
  • Op Temp Range: 0°C to +70°C
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Down
  • LED: G/Y
  • EMI Fingers: No
    • Download Datasheet
