Allied Components

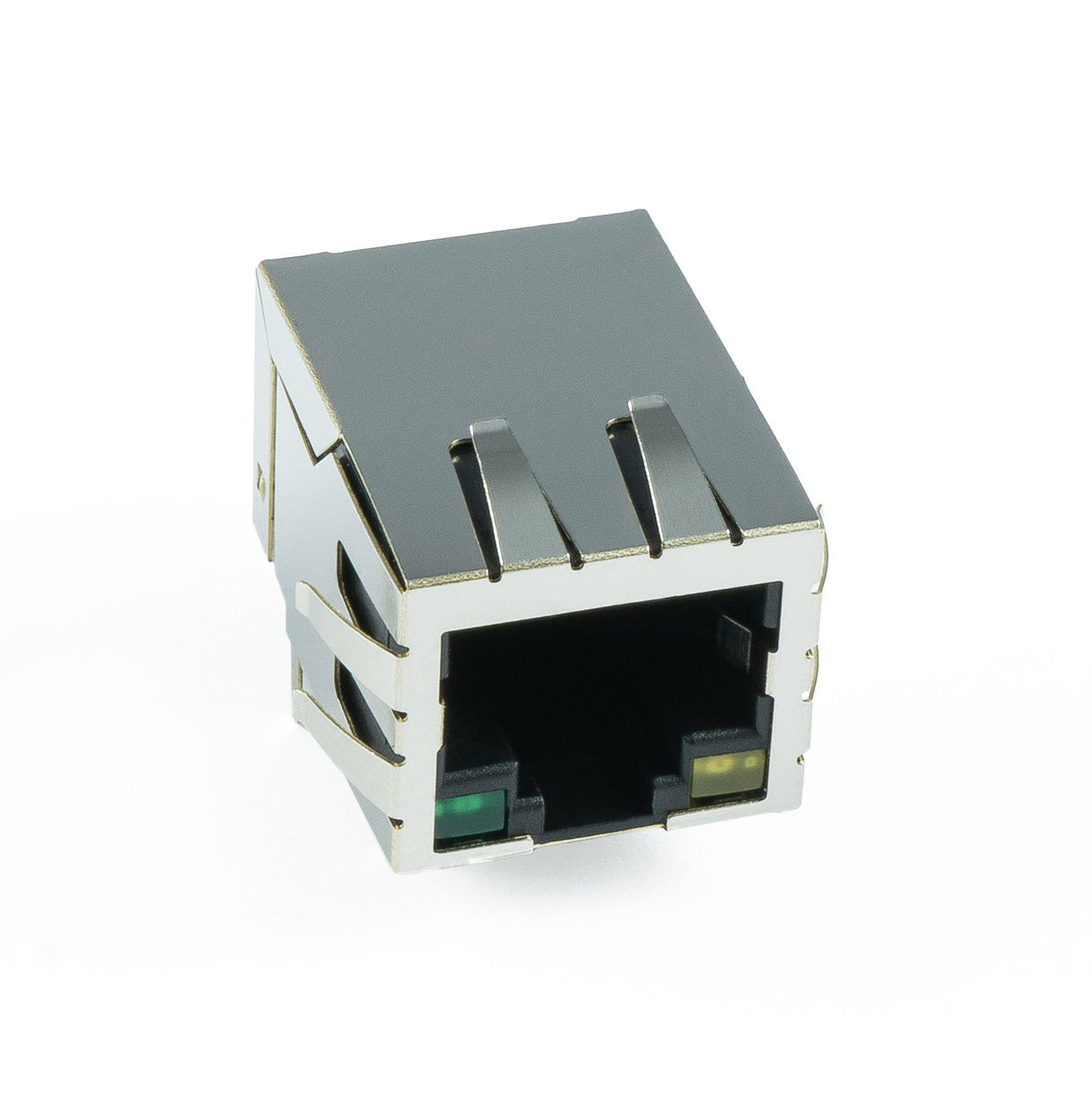

10/100 Base T / AR1009-1326I

$0.00
  • 10/100 Base-T Ethernet Application
  • Impedance: 100OHMS
  • Transmit open circuit inductance (OCL): 350µH (MIN) @100KHz 0.1VRMS with 8mA DC Bias
  • Rise Time: 2.5nano-seconds from 10 to 90 percent
  • Industrial Temp: -40ºC to +85ºC
  • Contact Factory for Standard Temp.
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Down
  • LED: G/Y
  • EMI Fingers: Yes
    • Download Datasheet
