Allied Components

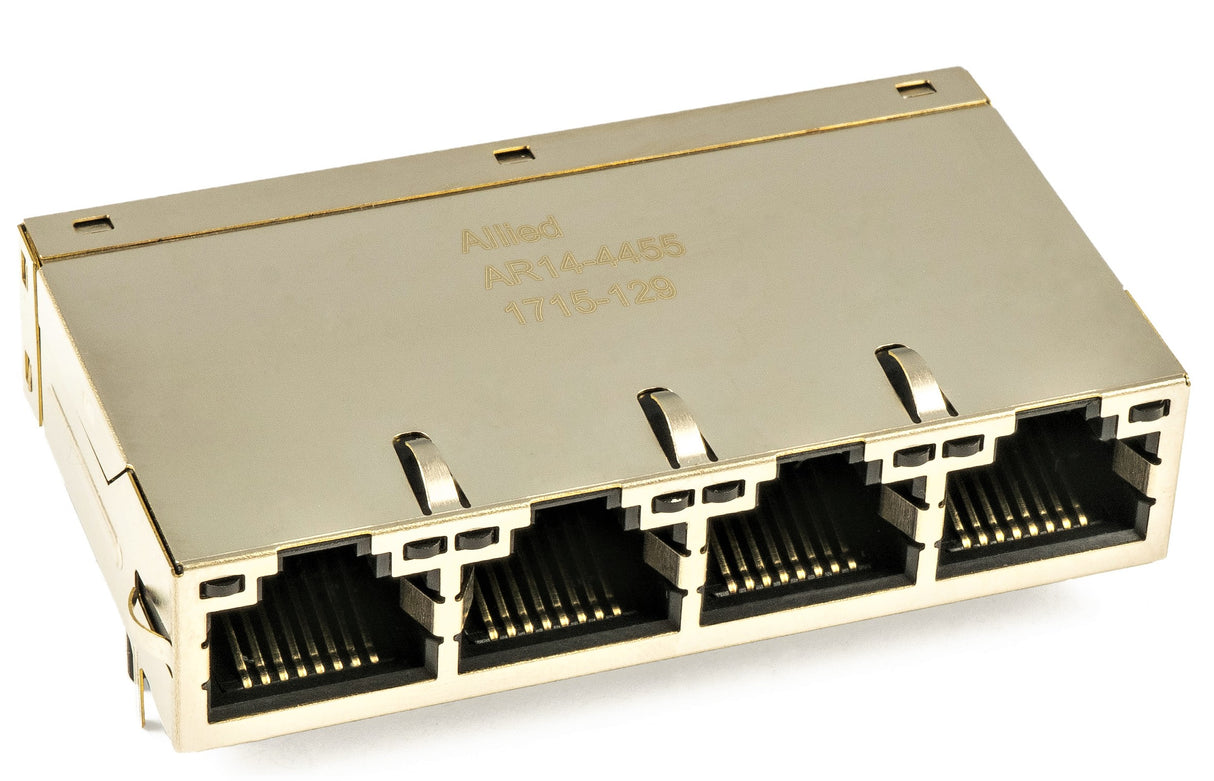

1 X 4 100/1000 Base T Gigabit / PoE+ / AR14-4455

$0.00
  • 10/100/1000 Base-T for Ethernet Applications
  • For PoE+ Applications. Compliant with IEEE802.3at
  • Balanced DC Current: 720mA @ 57VDC
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Operating Temperature: 0°C to ±70°C
  • Storage Temperature: -40°C to ±85°C
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: PoE+
  • Speed: 100/1000
  • Ports: Quad
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Up
  • LED: G/Y-G/Y
  • EMI Fingers: Yes
    • Download Datasheet
