Allied Components

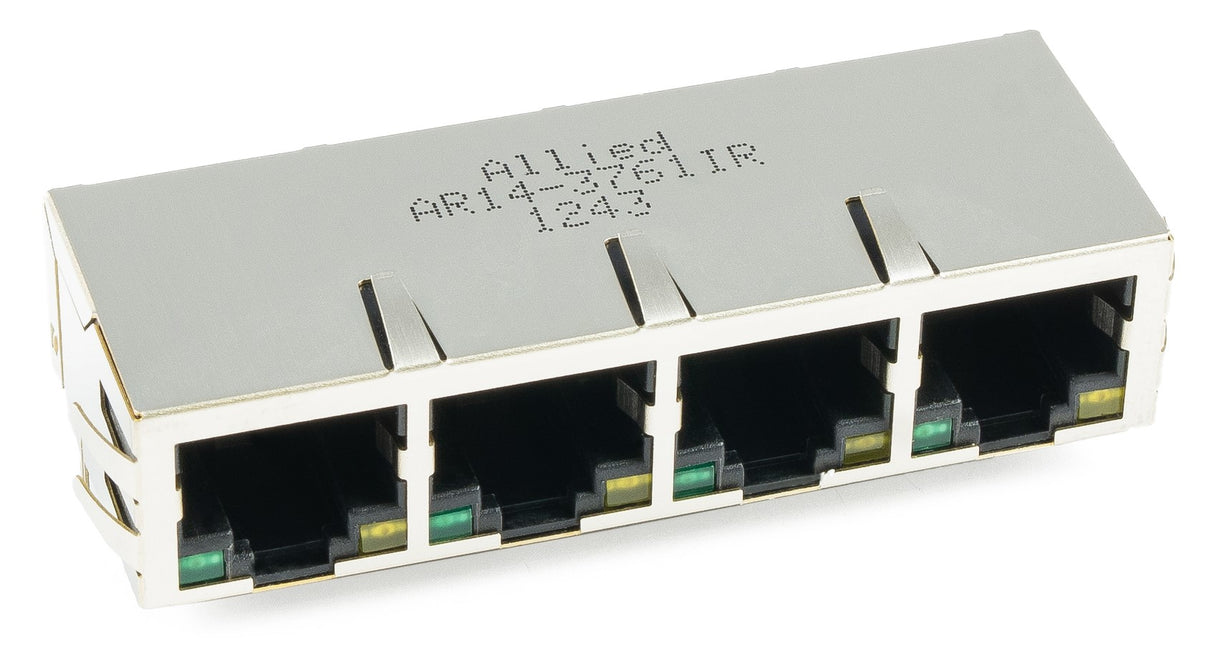

1 X 4 10/100 Base T / AR14-3761IR

$0.00
  • 10/100 Base-T Ethernet Application
  • With Green and Yellow LED’S
  • Impedance: 100OHMS
  • Transmit open circuit inductance (OCL): 350µH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Industrial Temp: -40ºC to +85ºC
  • Contact factory for Standard Operating Temp.
  • Storage temperature range: -40ºC to +85ºC
  • Suitable for Reflow Soldering
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Quad
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Down
  • LED: G/Y
  • EMI Fingers: Yes
    • Download Datasheet
