Allied Components | SKU:

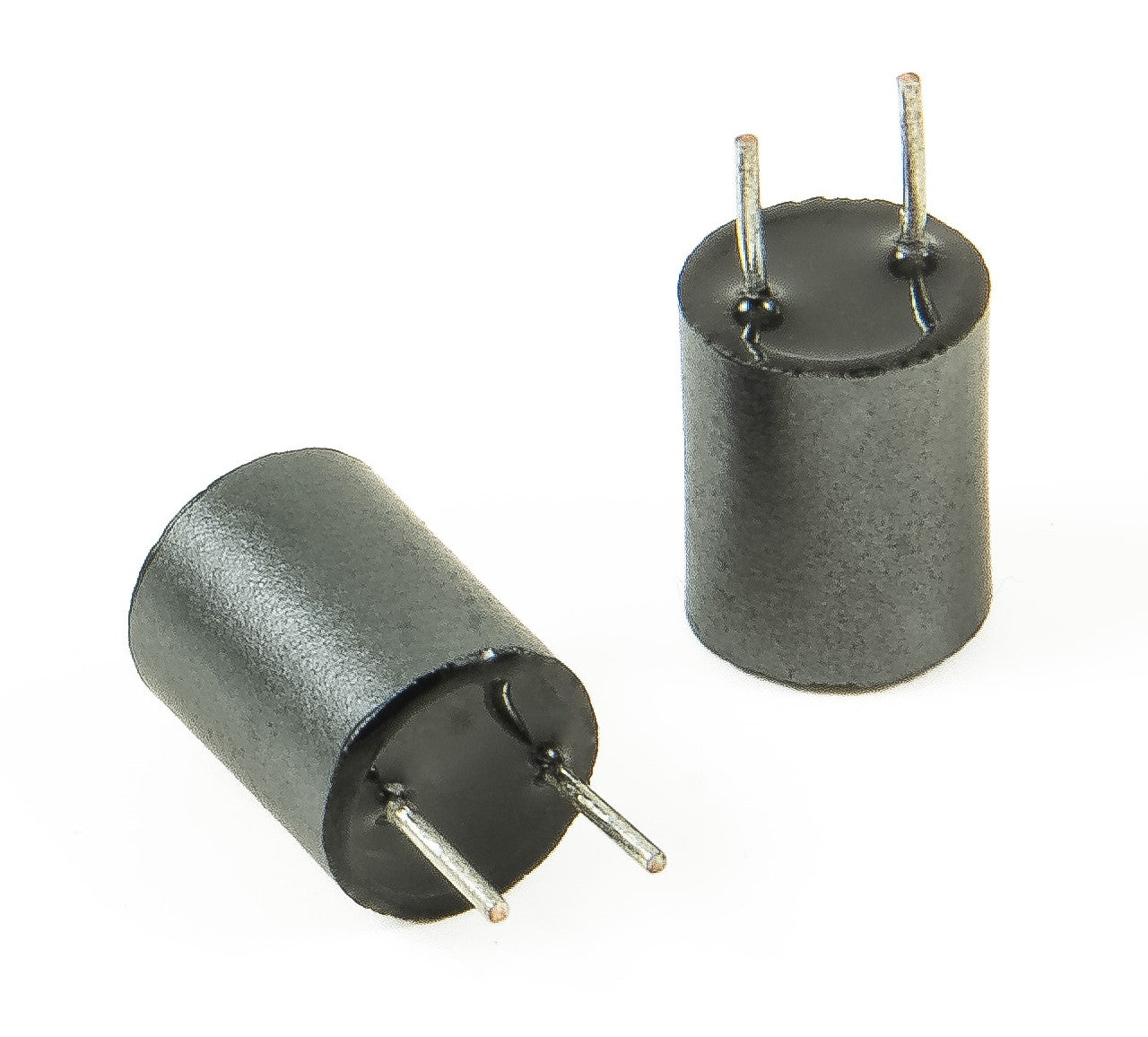

ARS875 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Magnetically Shielded
- Small Foot Print
Electrical
- Inductance Range: 22µH - 10000µH
- Current Rating: Based on a 10% chnage in initial inductance and temperature rise of no more than 30ºC from the coil body
- Operating Temperature: -40º to +125ºC Under no circumstances should the temperature of the part increase to more than 125ºC
Test Equipment
- Inductance: HP4263B & HP4284A
- DCR: HP4263B Current Source and DCR Meter
- IDC: 11021 Current Source and DCR Meter
Physical
- Packaging: 500 Tray or 1000 Ammo Pack
- Marking: EIA Inductance Code
ARS875 Series - ARS875-220L is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 22µH
- Rated Current: 1600mA
- DCR Max: 0.08Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 27µH
- Rated Current: 1490mA
- DCR Max: 0.1Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 33µH
- Rated Current: 1300mA
- DCR Max: 0.14Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 39µH
- Rated Current: 1200mA
- DCR Max: 0.15Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 47µH
- Rated Current: 1100mA
- DCR Max: 0.17Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 56µH
- Rated Current: 990mA
- DCR Max: 0.19Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 68µH
- Rated Current: 890mA
- DCR Max: 0.21Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 82µH
- Rated Current: 810mA
- DCR Max: 0.27Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 100µH
- Rated Current: 740mA
- DCR Max: 0.32Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 120µH
- Rated Current: 670mA
- DCR Max: 0.36Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 150µH
- Rated Current: 600mA
- DCR Max: 0.51Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 180µH
- Rated Current: 550mA
- DCR Max: 0.57Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 220µH
- Rated Current: 500mA
- DCR Max: 0.76Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 270µH
- Rated Current: 450mA
- DCR Max: 0.86Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 330µH
- Rated Current: 410mA
- DCR Max: 0.97Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 390µH
- Rated Current: 370mA
- DCR Max: 1.28Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 470µH
- Rated Current: 340mA
- DCR Max: 1.44Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 560µH
- Rated Current: 310mA
- DCR Max: 1.61Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 680µH
- Rated Current: 280mA
- DCR Max: 2.07Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 820µH
- Rated Current: 260mA
- DCR Max: 2.33Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1000µH
- Rated Current: 230mA
- DCR Max: 2.72Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1200µH
- Rated Current: 210mA
- DCR Max: 3.98Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1500µH
- Rated Current: 190mA
- DCR Max: 4.5Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 1800µH
- Rated Current: 170mA
- DCR Max: 6.81Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2200µH
- Rated Current: 160mA
- DCR Max: 7.56Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 2700µH
- Rated Current: 140mA
- DCR Max: 8.54Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3300µH
- Rated Current: 130mA
- DCR Max: 9.74Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 3900µH
- Rated Current: 120mA
- DCR Max: 12.9Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 4700µH
- Rated Current: 110mA
- DCR Max: 14.7Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 5600µH
- Rated Current: 99mA
- DCR Max: 20.4Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 6800µH
- Rated Current: 89mA
- DCR Max: 23Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 8200µH
- Rated Current: 81mA
- DCR Max: 30.6Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
- Inductance: 10000µH
- Rated Current: 74mA
- DCR Max: 35Ω
- Op Temp Range: -40°C to +125°C
- Height: 0.295 / 7.50
- Mounting Type: Through-Hole
- Shielded: Y Download Datasheet
