Allied Components

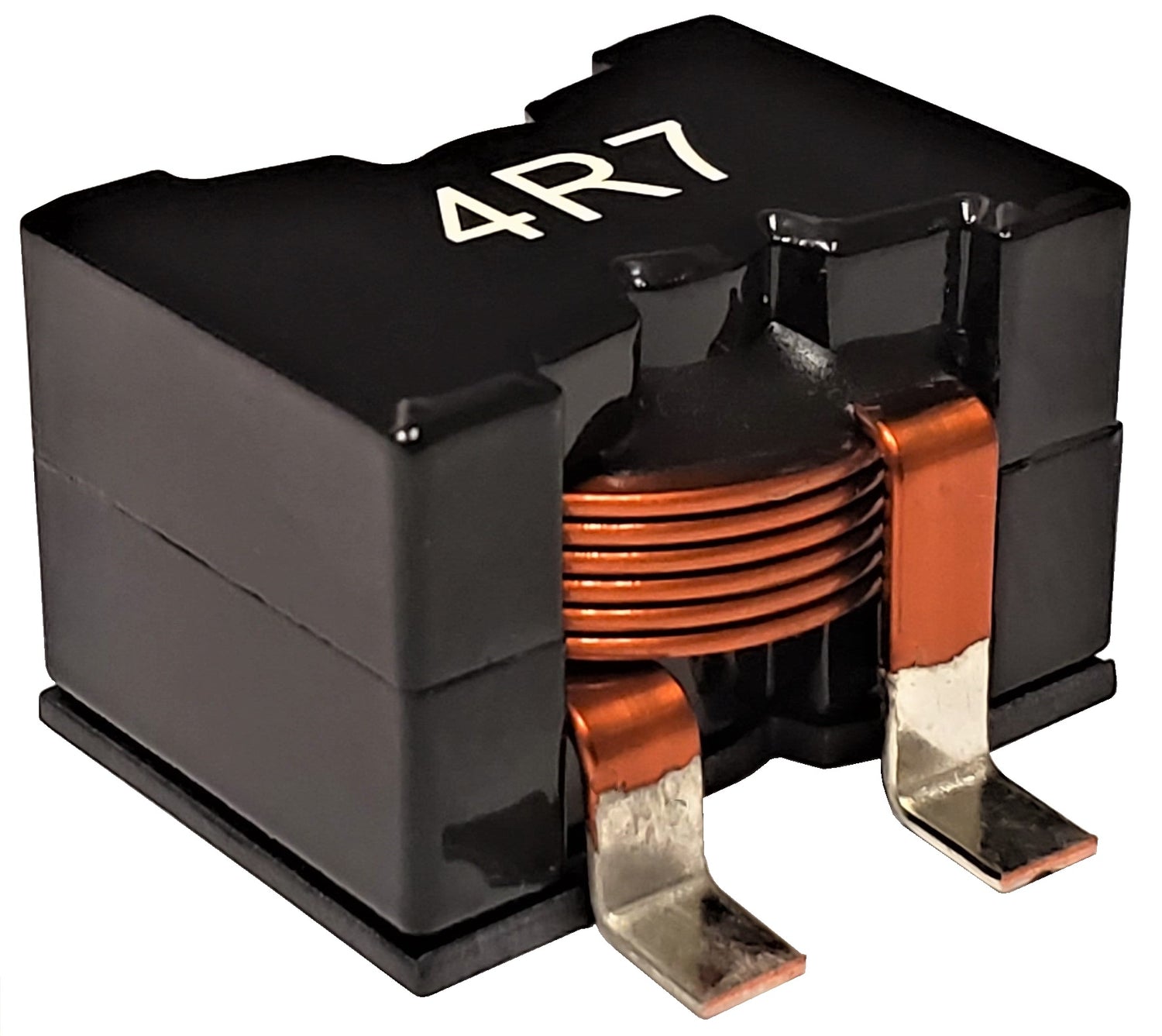

FWPQ2918BS Series

$0.00

Features

  • Flat Wire SMD Power Choke
  • Third Solder pad for mounting stability only.
  • Low Magnetic Loss
  • Low DCR
  • High Saturation Current

Electrical

  • Inductance Range: 3.3µH to 33µH
  • Tolerance: ±20%
  • Test Frequency: 100KHz, 0.1V
  • Operating Temp: -40ºC to +125 ºC
  • Isat: Current at which the inductance will drop by 20% from its original Inductance without current.
  • Temperature Rise Current: The actual value of DC current when the temperature rise is ΔT 40°C (Ta=25°C)

Physical

  • Packaging: 30 per Tray, 270pcs per Carton
  • Marking: Standard EIA Code
Part Number

Specifications
  • Inductance: 3.3μH
  • Rated Current: 92.5A
  • DCR Max: 2.86mΩ
  • Op Temp Range: -40°C to +125°C
  • Length: 1.099 / 27.9
  • Width: 1.099 / 27.9
  • Height: .701 / 17.8
  • Mounting Type: Surface Mount
  • Shielded: Y
    • Download Datasheet
