Allied Components

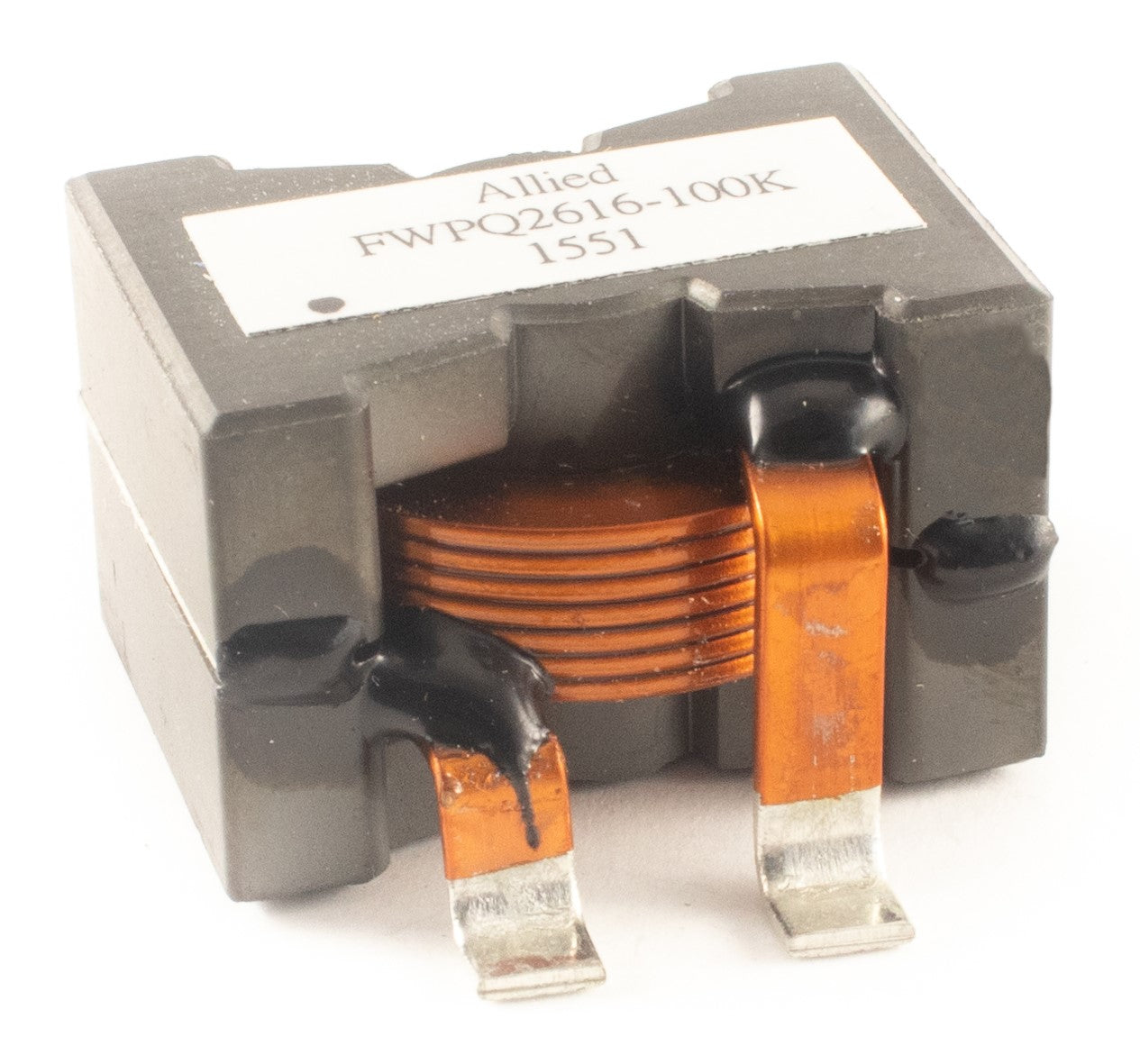

FWPQ2616 Series

$0.00

Features

  • Flat Wire SMD Power Choke
  • Ultra Low DCR
  • High Saturation Current up to 100A
  • Frequency Range up to 1MHz

Electrical

  • Inductance Range: 1.5μH ~ 33μH
  • Tolerance: 10%
  • Test Frequency: 100KHz, 0.1V
  • Operating Temp: -40ºC ~ +85 ºC
  • Irms: Current at which the temperature rise will not exceed 40ºC above ambient.
  • Isat: Current at which the inductance will drop by no more than the specified amount from its original Inductance without current.

Physical

  • Packaging: 40 per Tray. 280pcs per Carton.
  • Marking: Part number
Part Number

Specifications
  • Inductance: 1.5μH
  • Rated Current: 100A
  • DCR Max: 1.62mΩ
  • Op Temp Range: -40°C to +85°C
  • Length: 1.100 / 27.94
  • Width: 1.090 / 27.69
  • Height: 0.693 / 17.60
  • Mounting Type: Surface Mount
  • Shielded: Y
    • Download Datasheet
