Allied Components

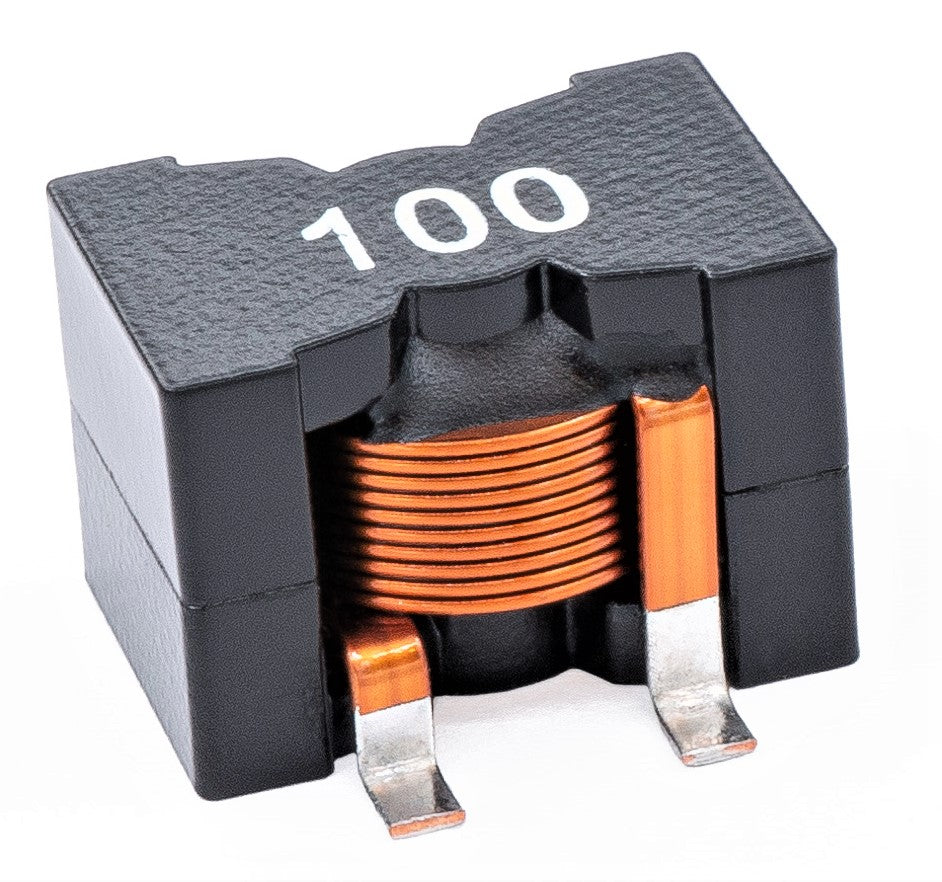

FWPQ2014 Series

$0.00

Features

  • Flat Wire SMD Power Choke
  • Ultra Low DCR
  • High Saturation Current up to 60A
  • Low Magnetic Loss

Electrical

  • Inductance Range: 2.2µH - 33.0µH
  • Tolerance: 20%
  • Test Frequency: 100KHz, 0.1V
  • Operating Temp: -40°C to +125°C
  • Irms: Current at which the temperature rise will not exceed 40 ºC above ambient .
  • Isat: Current at which the inductance will drop by no more than 20% from its initial Inductance without current.

Physical

  • Packaging: 100 per Reel | 400 per Carton.
  • Marking: EIA Code
Part Number

Specifications
  • Inductance: 2.2μH
  • Rated Current: 60A
  • DCR Max: 2.2mΩ
  • Op Temp Range: -40°C to +125°C
  • Length: .858/21.8
  • Width: .846/21.5
  • Height: .571/14.5
  • Mounting Type: Surface Mount
  • Shielded: Y
    • Download Datasheet
