Allied Components

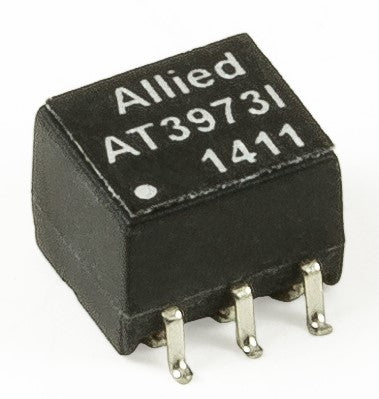

SMD / AT3973I

$0.00
  • Encased Toroid Design
  • 6 Pin Surface Mount
  • For Ethernet based LAN, WAN and other Networking Applications
  • Designed to meet IEEE802.3u Requirements
  • Operating Temperature Range: -40°C to +85°C
  • Maximum Reflow Temperature is 250ºC/-5ºC, 20~40 sec. (Ref to IPC/JEDEC J-STD-020C Standard)
    (Ref to IPC/JEDEC J-STD-020C Standard)
Part Number

Specifications
  • Pins: 6
  • Op Temp Range: -40°C to +85°C
  • Length: 0.400 / 10.160
  • Width: 0.321 / 8.156
  • Height: 0.246 / 6.248
  • Primary Inductance: 350µH
  • Turns Ratio: 1 CT : 1 CT
  • Geometry: Toroidal
  • Mounting Type: Surface Mount
    • Download Datasheet
