Allied Components | SKU:

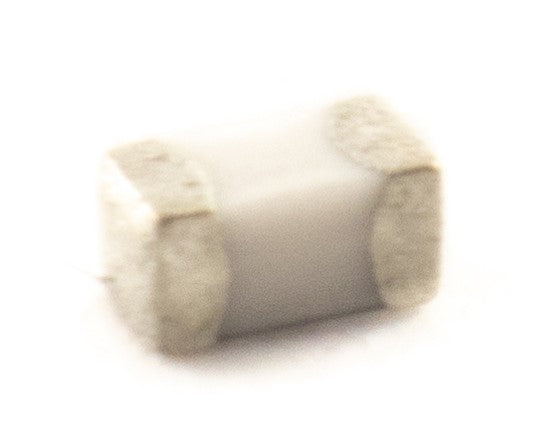

HFC05 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- 603 EIA size for high board density applications.
- Excellent Q and SRF characteristics for high frequency applications.
- Cost effective monolithic construction
Electrical
- Inductance Range: 1.0nh to 390nh
- Tolerance: use S for ± .3nh, J for 5%, K for 10%
- Test Frequency: Inductance and Q tested at 100MHz, 200mv with HP4191A Impedance Analyzer + HP16197A Inductance vs Freq. Characteristics measured on HP4191A Q vs Frequency Characteristics measured on HP4191A
- SRF: measured with HP4291A & HP16197A.
- DCR: measured with Chen Hwa CH502BC or HP4338B
- IDC: measured with HP4291-A + HP6632A
- IDC: The current at which the temp. will not rise by no more than 30ºC above ambient.
Mechanical
- Operating Temperature: -55ºC ~ 125ºC
- Storage Temperature: Under 25ºC, Humidty 40% - 65%
- Solderability: 90% terminal coverage
- Test Condition:Pre heat: 150ºC 1min.
- Solder composition:
- Sn/Ag3.0/Cu.0.5 (Pb free)
- Solder temp:245ºC±5ºC (pb Free)
- Immersion time: 4 ± 1 sec.
- Resistance to solder heat:
- No damage to part
- Test Condition
- Pre heat: 150ºC. 1min.
- Solder composition:
- Sn/Ag3.0/Cu.0.5 (Pb free)
- Solder temp: 260ºC±5ºC (pb Free)
- Immersion time: 10 ± 1 sec.
Physical
- Packaging: 4000 pieces per 7 inch reel.
- Marking: None
HFC05 Series - HFC05-1N0_-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 1nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.2nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.5nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.6nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.7nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.8nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.2nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.5nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.7nH
- Rated Current: 600mA
- DCR Max: 0.1000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.3nH
- Rated Current: 600mA
- DCR Max: 0.1200Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.9nH
- Rated Current: 600mA
- DCR Max: 0.1400Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.3nH
- Rated Current: 600mA
- DCR Max: 0.1600Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.7nH
- Rated Current: 600mA
- DCR Max: 0.1600Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.1nH
- Rated Current: 600mA
- DCR Max: 0.1800Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.4nH
- Rated Current: 600mA
- DCR Max: 0.1800Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.6nH
- Rated Current: 600mA
- DCR Max: 0.1800Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.2nH
- Rated Current: 600mA
- DCR Max: 0.2200Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.8nH
- Rated Current: 600mA
- DCR Max: 0.2200Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 7.5nH
- Rated Current: 600mA
- DCR Max: 0.2400Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 8.2nH
- Rated Current: 600mA
- DCR Max: 0.2400Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 10
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 10nH
- Rated Current: 600mA
- DCR Max: 0.2600Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 11.5nH
- Rated Current: 1000mA
- DCR Max: 0.3000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 12nH
- Rated Current: 600mA
- DCR Max: 0.2800Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 15nH
- Rated Current: 600mA
- DCR Max: 0.3200Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 18nH
- Rated Current: 600mA
- DCR Max: 0.3500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 22nH
- Rated Current: 500mA
- DCR Max: 0.4000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 27nH
- Rated Current: 500mA
- DCR Max: 0.4500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 33nH
- Rated Current: 400mA
- DCR Max: 0.5500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 39nH
- Rated Current: 400mA
- DCR Max: 0.6000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 47nH
- Rated Current: 400mA
- DCR Max: 0.7000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 56nH
- Rated Current: 400mA
- DCR Max: 0.7500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 62nH
- Rated Current: 400mA
- DCR Max: 0.8500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 68nH
- Rated Current: 400mA
- DCR Max: 0.8500Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 75nH
- Rated Current: 300mA
- DCR Max: 1Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 82nH
- Rated Current: 300mA
- DCR Max: 1Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 100nH
- Rated Current: 300mA
- DCR Max: 1.2000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 12
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 120nH
- Rated Current: 300mA
- DCR Max: 1.3000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 150nH
- Rated Current: 250mA
- DCR Max: 1.7000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 180nH
- Rated Current: 250mA
- DCR Max: 1.9000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 220nH
- Rated Current: 250mA
- DCR Max: 2Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 270nH
- Rated Current: 150mA
- DCR Max: 2.2000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 330nH
- Rated Current: 100mA
- DCR Max: 2.8000Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 390nH
- Rated Current: 100mA
- DCR Max: 3Ω
- Op Temp Range: -55ºC to -125ºC
- Q Min: 8
- Length: 0.063 / 1.600
- Width: 0.031 / 0.787
- Height: 0.031 / 0.787
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
