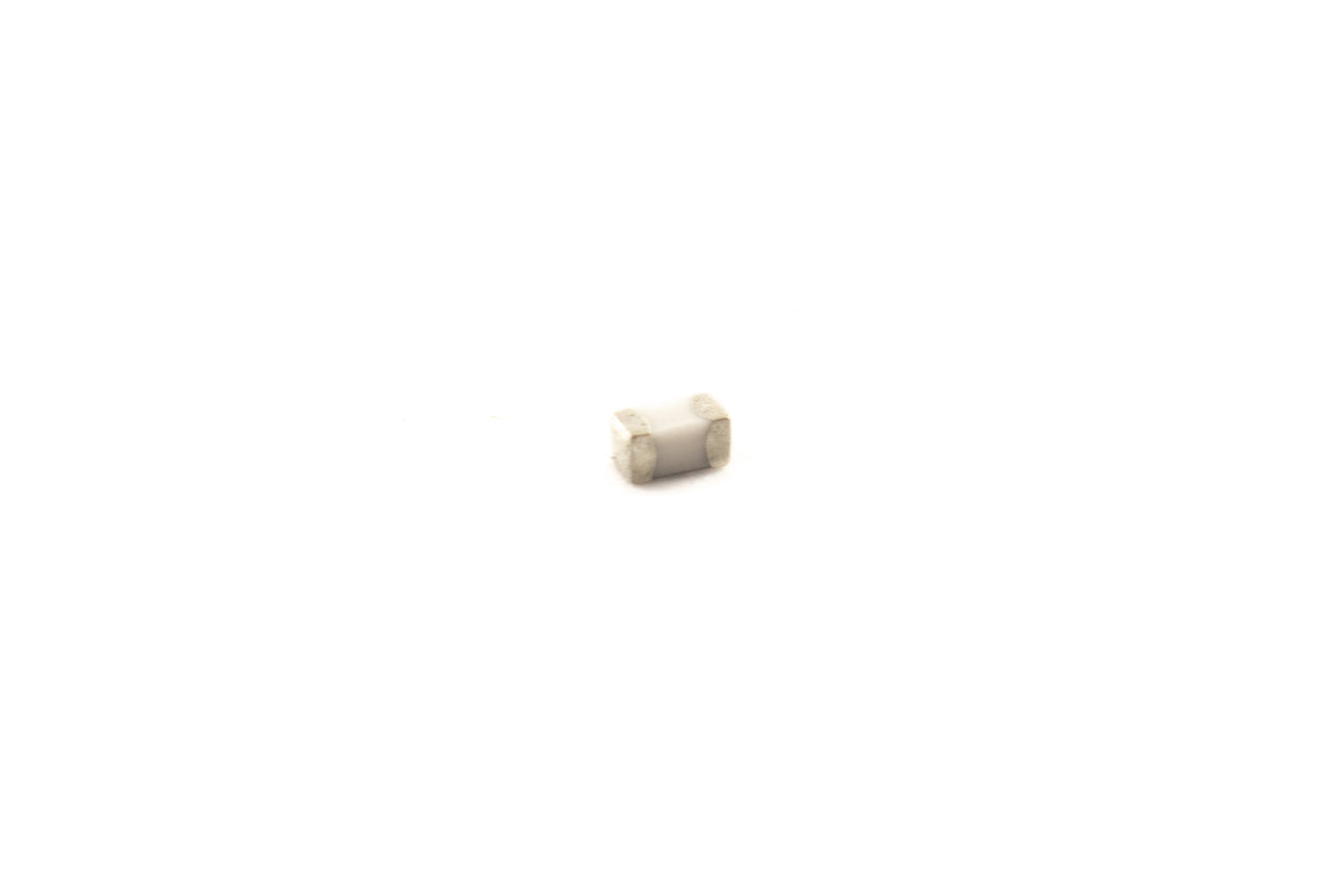

HFC02 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- 0201 EIA size for high board density applications.
- Excellent SRF characteristics exceeding 10Ghz
- Expanded inductance range
Electrical
- Inductance Range: 1.0nh to 100nh
- Tolerance: 1.0nH to 6.2nH=±.3nH, 6.8nH to 100nH=±+%
- Test Frequency: 100MHz
- Operating Temp: -55ºC to +125ºC
- Rated Current: The current at which the temp will not ride by more than 30ºC. Part temperature should not exceed 125ºC including temperature rise.
Resistance to Solder Heat
- Pre-Heat: 150ºC. 1min.
- Solder Composition: Sn/Ag3.0/Cu.0.5
- Solder Temp: 260ºC±5ºC
- Immersion time: 10 sec ± 1 sec.
Test Equipment
- L/Q): E4991A Agilent with 16197A
- DCR: HP4338B/CH502BC
- SRF: HP E4991A/HP19196C
Physical
- Packaging: 15000 pieces per7 inch reel.
HFC02 Series - HFC02-1N0S-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 1nH
- Rated Current: 470mA
- DCR Max: 0.1100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.2nH
- Rated Current: 450mA
- DCR Max: 0.1200Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.5nH
- Rated Current: 430mA
- DCR Max: 0.1300Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.8nH
- Rated Current: 390mA
- DCR Max: 0.1600Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2nH
- Rated Current: 380mA
- DCR Max: 0.1700Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.2nH
- Rated Current: 360mA
- DCR Max: 0.1900Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.4nH
- Rated Current: 350mA
- DCR Max: 0.2000Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.7nH
- Rated Current: 340mA
- DCR Max: 0.2100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3nH
- Rated Current: 330mA
- DCR Max: 0.2200Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.3nH
- Rated Current: 320mA
- DCR Max: 0.2300Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.6nH
- Rated Current: 310mA
- DCR Max: 0.2500Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.9nH
- Rated Current: 300mA
- DCR Max: 0.2700Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.3nH
- Rated Current: 280mA
- DCR Max: 0.3000Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.7nH
- Rated Current: 280mA
- DCR Max: 0.3000Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.1nH
- Rated Current: 270mA
- DCR Max: 0.3300Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.6nH
- Rated Current: 260mA
- DCR Max: 0.3600Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.2nH
- Rated Current: 250mA
- DCR Max: 0.3800Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.8nH
- Rated Current: 250mA
- DCR Max: 0.3900Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 7.5nH
- Rated Current: 240mA
- DCR Max: 0.4100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 8.2nH
- Rated Current: 230mA
- DCR Max: 0.4500Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 9.1nH
- Rated Current: 220mA
- DCR Max: 0.4800Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 10nH
- Rated Current: 220mA
- DCR Max: 0.5100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 12nH
- Rated Current: 190mA
- DCR Max: 0.6800Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 15nH
- Rated Current: 180mA
- DCR Max: 0.7100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 18nH
- Rated Current: 170mA
- DCR Max: 0.8100Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 22nH
- Rated Current: 150mA
- DCR Max: 1Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 27nH
- Rated Current: 120mA
- DCR Max: 1.3500Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 33nH
- Rated Current: 110mA
- DCR Max: 1.4700Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 39nH
- Rated Current: 100mA
- DCR Max: 1.7200Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 47nH
- Rated Current: 100mA
- DCR Max: 1.9000Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 56nH
- Rated Current: 80mA
- DCR Max: 2.2700Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 68nH
- Rated Current: 80mA
- DCR Max: 2.6600Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 82nH
- Rated Current: 70mA
- DCR Max: 3.3700Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 100nH
- Rated Current: 60mA
- DCR Max: 3.7400Ω
- Op Temp Range: -55ºC to +125ºC
- Q Min: 4
- Length: 0.024 / 0.610
- Width: 0.012 / 0.305
- Height: 0.012 / 0.305
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
