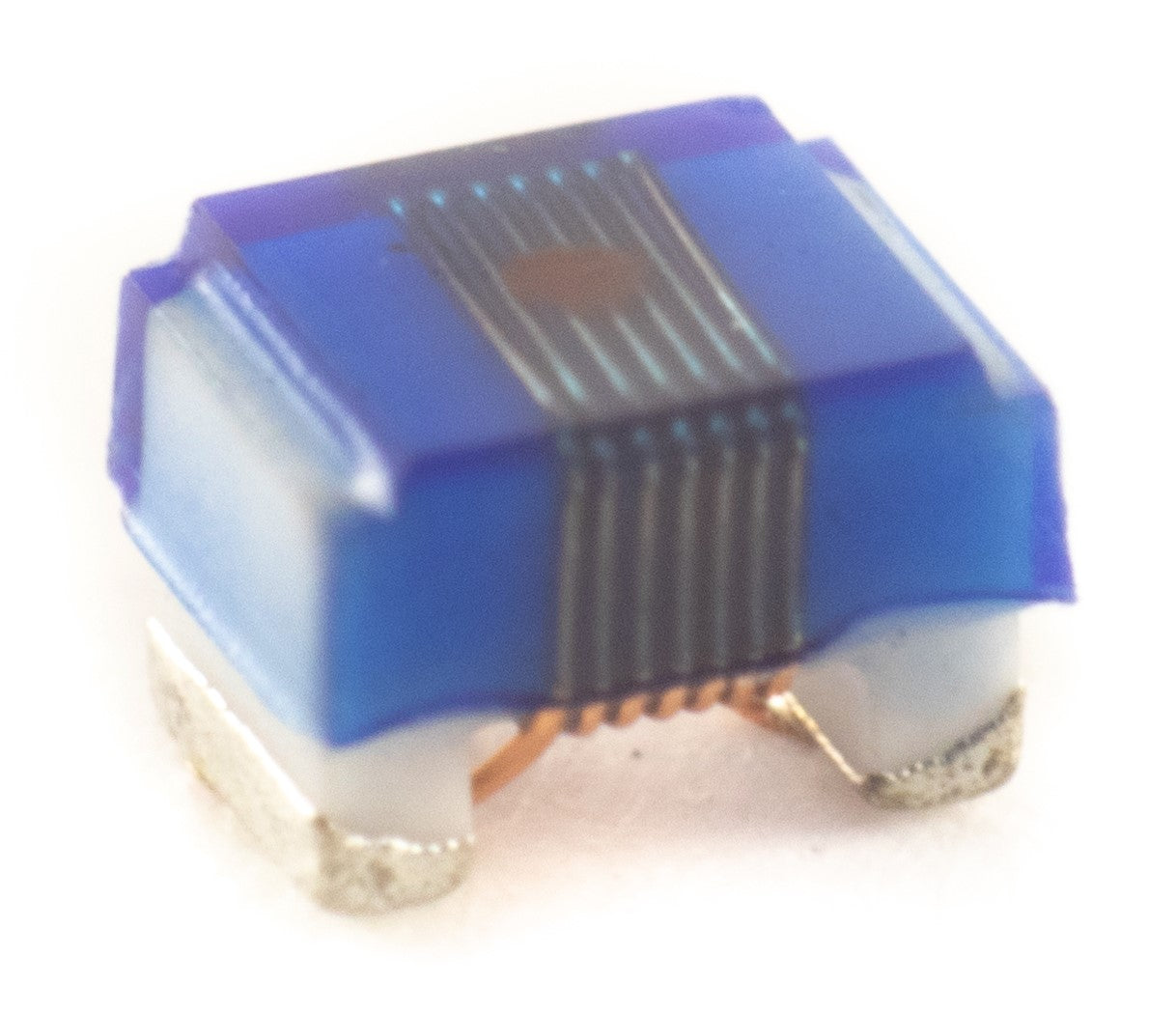

CHQ05 Series

Features

• 0805 size suitable for pick and place automation.
• Exceptional High Q values at high frequencies.
• Ceramic core provides high self resonant frequencies.
• Low DC resistance ideal for mobile applications.
• High Current and low loss excellent for RF applications.
• Non-Magnetic core assures excellent thermal stability and batch consistency.

Electrical

• Inductance Range: 2.5nH to 51nH
• Tolerance: 2.5nH-12nH available in 10% & 5%, 16nH-51nH available in 10%, 5%, and 2%.
• Test Frequency: At specified Frequency with Test OSC @ 200mV.
• Operating Temp: -40ºC ~ 125ºC
• Irms: Based on 15ºC temperature rise @ 25ºC Ambient.

Resistance to Soldering Heat

• Test Method: Reflow Solder the device onto PCB.
• Peak Temp: 260ºC ± 5ºC for 10 sec.
• Solder Composition: Sn/Ag3.0/Cu0.5.
• Total test time: 6 minutes

Test Equipment

• (L/Q): HP4286A / HP4287A / Agilent E4491A
• (SRF): HP8753D / Agilent E4991
• (RDC): Chen Hwa 502BC
• Irms: HP4284A + HP42841A / HP4285A + HP42841A +HP4284A + HP42841A

Physical

• Packaging: 2000 pieces per 7 inch reel.
• Marking: Single Dot Color Code System
