Allied Components

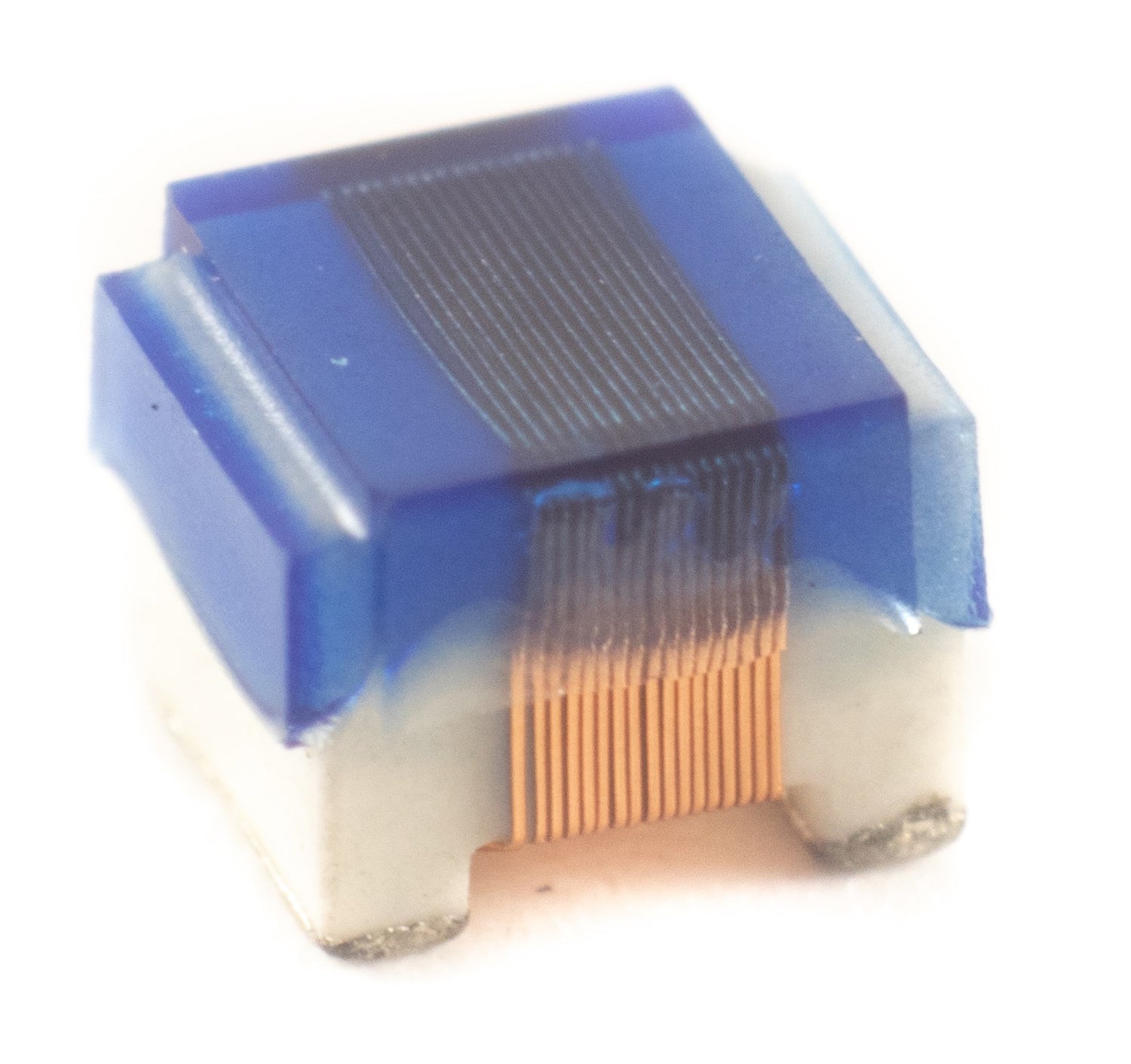

CC10 Series

$0.00

Features

  • 1008 size suitable for pick and place automation
  • Low Profile under 2.20mm
  • Ceramic core provide high self resonant frequency.
  • High Q values at high frequencies
  • Ceramic core also provides excellent thermal and batch consistency

Electrical

  • Inductance Range: 10nH to 10,000nH
  • Tolerance: Available as noted. Insert letter for desired tolerance.
  • Test Frequency: At specified frequency
  • Operating Temp: -40ºC ~ 125ºC
  • Rated Current: The current at which the inductance shall change no more than 20% of initial value.

Resistance to Soldering Heat

  • Test Method: Reflow Solder the device onto PCB
  • Peak Temp: 260ºC ± 5ºC for 10 sec.
  • Inductance Change: Within ±10% of initial value
  • Q: Shall not exceed specification.
  • RDC: Within 15% of initial value and shall not exceed specifications

Test Equipment

  • (L/Q): Agilent 4291, 4287, E4991
  • (SRF): Agilent 4291, E4991
  • (RDC): Agilent 4338
  • Irms: HP4284A + HP42841A+/HP4285A+ HP42841A

Physical

  • Packaging: 2000 pieces per 7 inch reel.
  • Marking: None
Part Number

Specifications
  • Inductance: 10nh
  • Rated Current: 1000mA
  • DCR Max: 0.08Ω
  • Op Temp Range: -40°C to +125°C
  • Q Min: 50
  • Length: 0.115 / 2.921
  • Width: 0.11 / 2.794
  • Height: 0.087 / 2.210
  • Mounting Type: Surface Mount
  • Shielded: N
