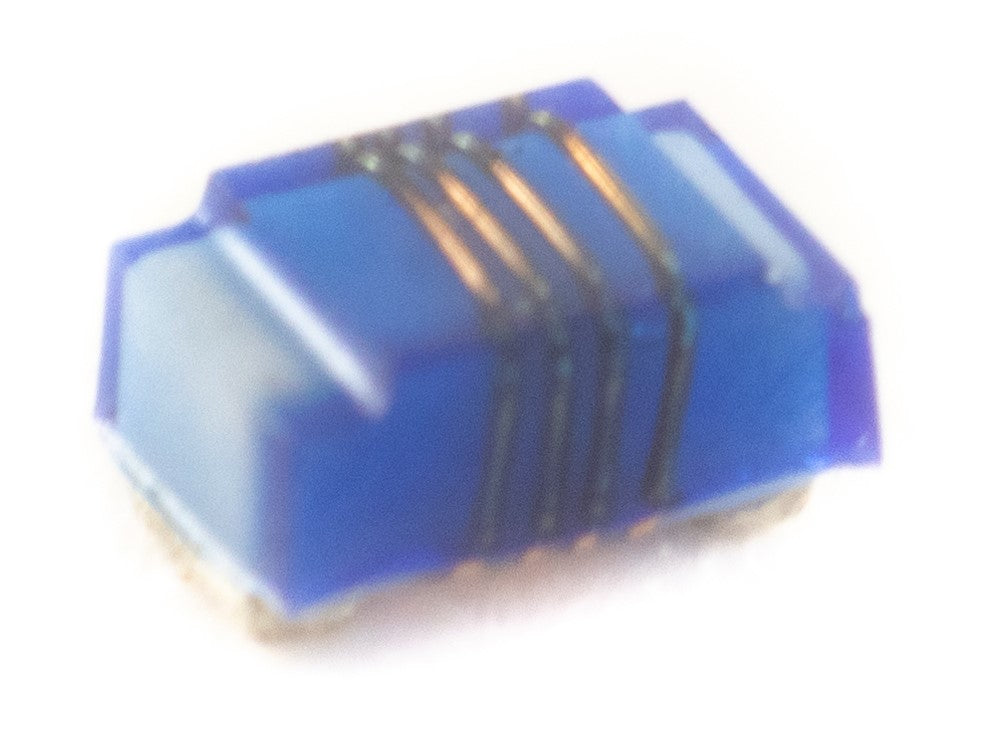

CC03 Series

$0.00

Features

  • 0603 size suitable for pick and place automation
  • Low Profile under 1.20mm
  • Ceramic core provide high self resonant frequency.
  • High Q values at high frequencies
  • Ceramic core also provides excellent thermal and batch consistency
  • Lead Free and Halogen Free

Electrical

  • Inductance Range: 2.0nH to 390nH
  • Tolerance: Available as noted. Insert letter for desired tolerance.
  • Test Frequency: At specified frequency with Test OSC @ 0.1V
  • Operating Temp: -40ºC ~ 125ºC
  • Rated Current: Current at which inductance will change by no more than 20% of initial value without current.

Resistance to Soldering Heat

  • Test Method: Reflow Solder the device onto PCB
  • Peak Temp: 260ºC ± 5ºC for 10 sec.
  • Inductance Change: Within ± 10% of initial value.
  • RDC: Within ± 15% of initial value.

Test Equipment

  • (L/Q): Agilent 4291, 4287, E4991, 4192, 4285
  • (SRF): Agilent 4291, E4991
  • (RDC): Agilent 4338
  • Current: Agilent 4192, 4338, E4991

Physical

  • Packaging: 3000 pieces per 7 inch reel.
  • Marking: None
Part Number

Specifications
  • Inductance: 2nh
  • Rated Current: 700mA
  • DCR Max: 0.07Ω
  • Op Temp Range: -40°C to +125°C
  • Q Min: 13
  • Length: 0.071 / 1.803
  • Width: 0.048 / 1.219
  • Height: 0.048 / 1.219
  • Mounting Type: Surface Mount
  • Shielded: N
