Allied Components

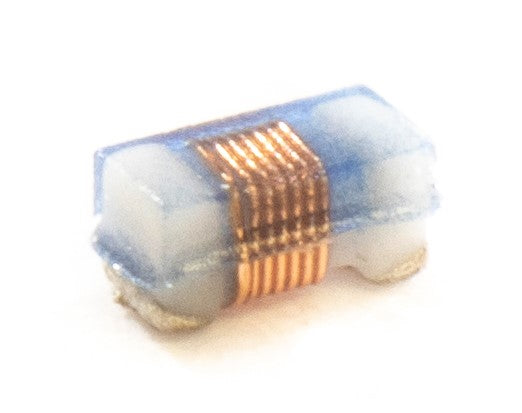

CC02 Series

$0.00

Features

  • 0402 size suitable for pick and place automation
  • Low Profile under .61mm
  • Ceramic core provide high self resonant frequency.
  • High Q values at high frequencies
  • Ceramic core also provides excellent thermal and batch consistency

Electrical

  • Inductance Range: 1nH to 120nH
  • Tolerance: Available as noted. Insert letter for desired tolerance
  • Test Frequency: At specified frequency
  • Operating Temp: -40ºC ~ 125ºC
  • Rated Current: Current at which inductance will be changed by no more than 20% initial value without current.

Resistance to Soldering Heat

  • Test Method: Reflow Solder the device onto PCB
  • Peak Temp: 260ºC ± 5ºC for 10 sec.
  • Inductance Change: Within 5% of initial value
  • Q Change: Within 10% of initial value.

Test Equipment

  • (L/Q): HP4286
  • (SRF): HP4287
  • (RDC): GOM 801G
  • Irms: HP4284A + HP42841A / HP4285A + HP42841A

Physical

  • Packaging: 4000 pieces per 7 inch reel.
  • Marking: None
Part Number

Specifications
  • Inductance: 1nh
  • Rated Current: 1360mA
  • DCR Max: 0.045Ω
  • Op Temp Range: -40°C to +125°C
  • Q Min: 16
  • Length: 0.050 / 1.270
  • Width: 0.030 / 0.762
  • Height: 0.024 / 0.610
  • Mounting Type: Surface Mount
  • Shielded: N
    • Download Datasheet
