Allied Components

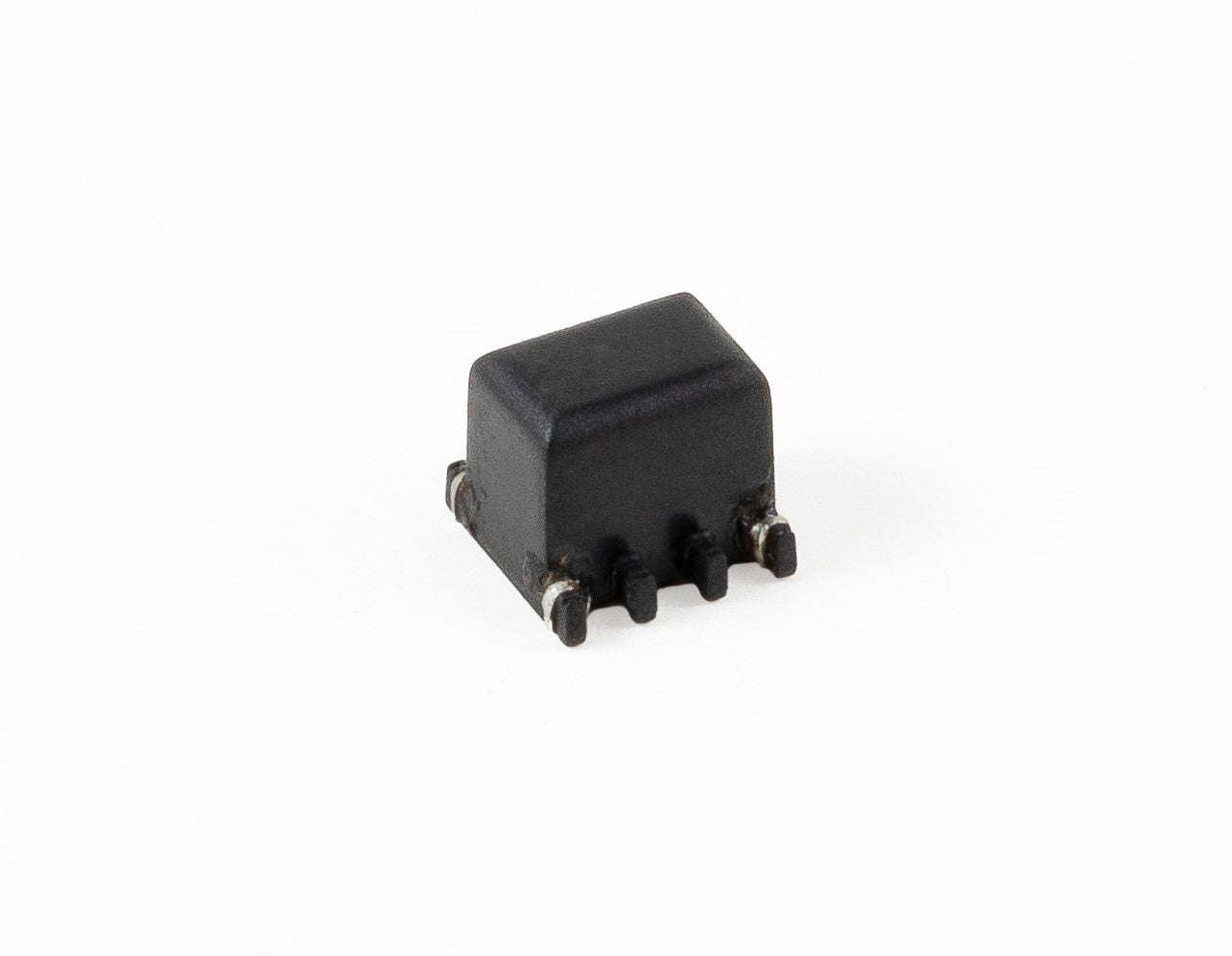

SMD / AGDT-3738

$0.00
  • Encased Toroid Design
  • 8 Pin Surface Mount Device
  • Gate Drive Transformer
  • Operating Temperature Range: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250°C/-5°C for 20-40 seconds
    (Refer to IPC/JEDECJ-STD-02C Standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 0.340 / 8.636
  • Width: 0.330 / 8.382
  • Height: 0.295 / 7.493
  • Primary Inductance: 1200µH
  • Turns Ratio: 1 : 1
  • Geometry: Toroidal
  • Mounting Type: Surface Mount
    • Download Datasheet
