Allied Components

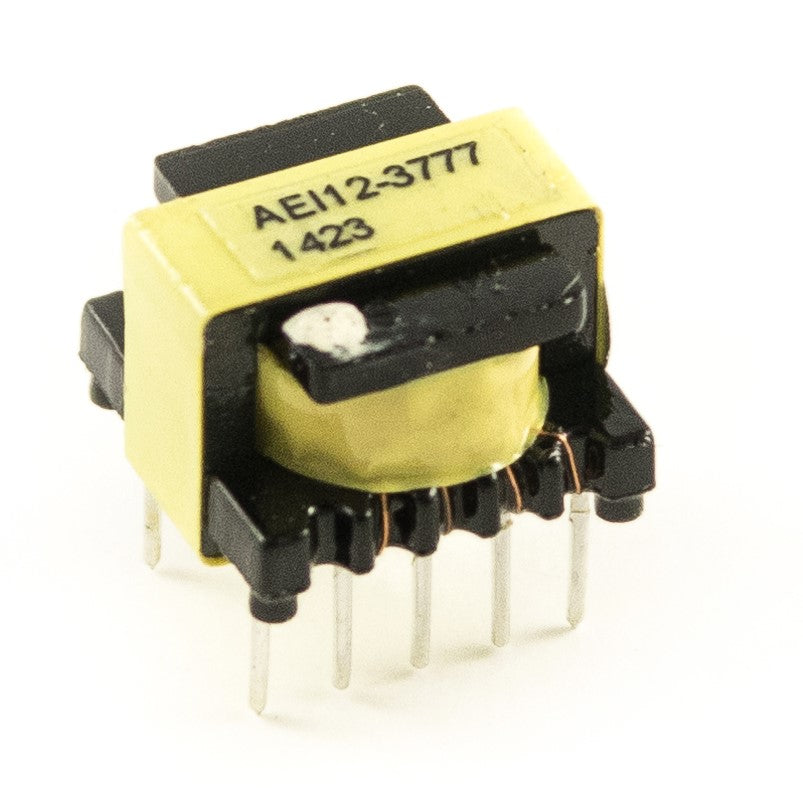

EI12 Vertical Mount / AEI12-3777

$0.00
  • EI12 Core Design
  • 10 Pin Through Hole, Vertical mount
  • Operating Temperature Range: -20°C to +85°C
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -20°C to +85°C
  • Length: 0.508 / 12.903
  • Width: 0.500 / 12.700
  • Height: 0.378 / 9.601
  • Primary Inductance: 150mH
  • Turns Ratio: 1 : 4 : 58
  • Geometry: EI12
  • Mounting Type: Through-Hole
    • Download Datasheet
