Allied Components

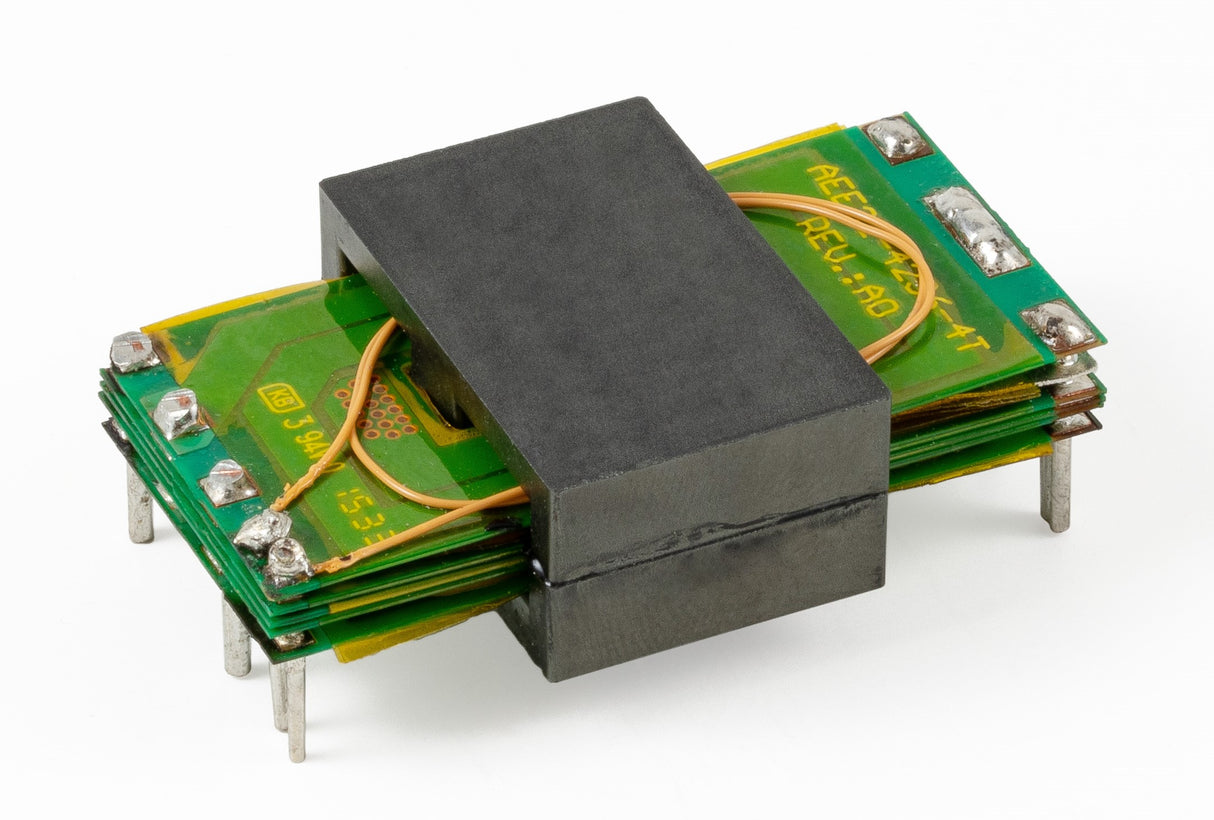

EE32 Horizontal Mount / AEE32-4236

$0.00
  • Input power of power supply : 400W(12Vdc/33.3Adc).
  • Frequency of transformer: 200KHz.
  • Output ripple frequency : 400KHz.
  • Topology : Phase shifted Full bridge, 2 diodes rectifier.
  • Input voltage of power stage : 36~75 Vdc link.
  • Input voltage of transformer : 35~74 Vpeak.
  • Duty cycle, max. (for 0.5V diode drop voltage) : 2 x 0.444.
  • Maximum Volt-Sec product : 2 x 77.8 V-uSec.
  • EE32 Planar Transformer Design
Part Number

Specifications
  • Pins: 15
  • Op Temp Range: -40°C to +125°C
  • Length: 2.00 / 51
  • Width: 1.30 / 33
  • Geometry: EE32
  • Mounting Type: Through-Hole
  • Primary Inductance: 100µH
  • Turns Ratio: 2.5 : 1 : 1 : 1
  • Height: .55 / 14
    • Download Datasheet
