Allied Components

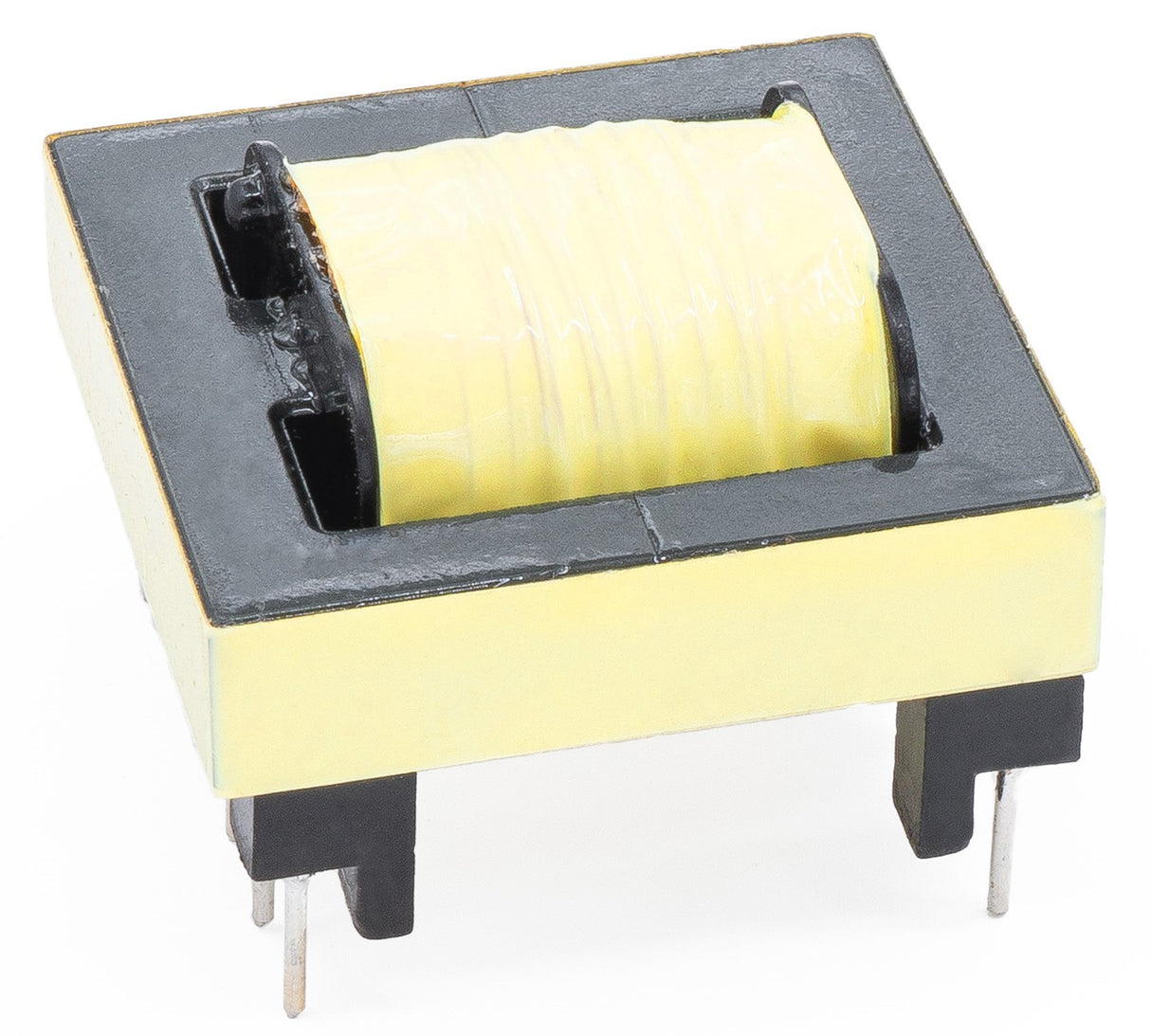

EE30 Horizontal Mount / AEE30-4623

$0.00
  • EE30 Core Design
  • Through Hole Mounting
  • Operating Temperature Range: -40°C to +125°C
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +125°C
  • Length: 1.220 / 31.0
  • Width: 1.220 / 31.0
  • Geometry: EE30
  • Mounting Type: Through-Hole
  • Primary Inductance: 300µH
  • Turns Ratio: 4 : 1 : 1 : 1
  • Height: .984 / 25.0
    • Download Datasheet
