Allied Components

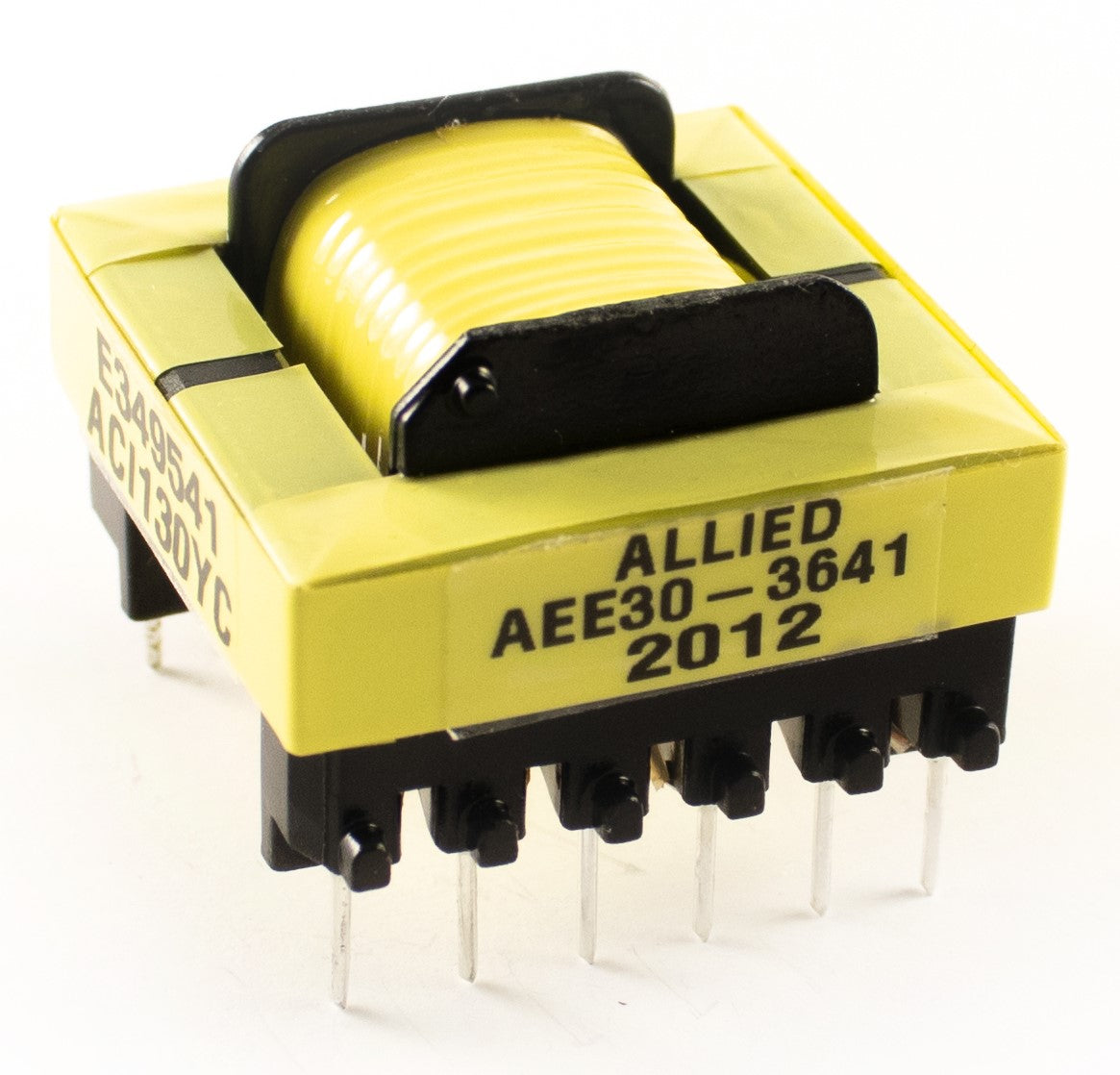

EE30 Horizontal Mount / AEE30-3641

$0.00
  • EE30 Core Design
  • UL Class B 130 Compliant File # E349541
  • For Lighting and other applications
  • HiPot 3000VAC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.319 / 33.5
  • Width: 1.201 / 30.5
  • Geometry: EE30
  • Mounting Type: Through-Hole
  • Primary Inductance: 420µH
  • Turns Ratio: 1 : 0.2 : 0.3 : 0.3
  • Height: 0.925 / 23.5
    • Download Datasheet
