Allied Components

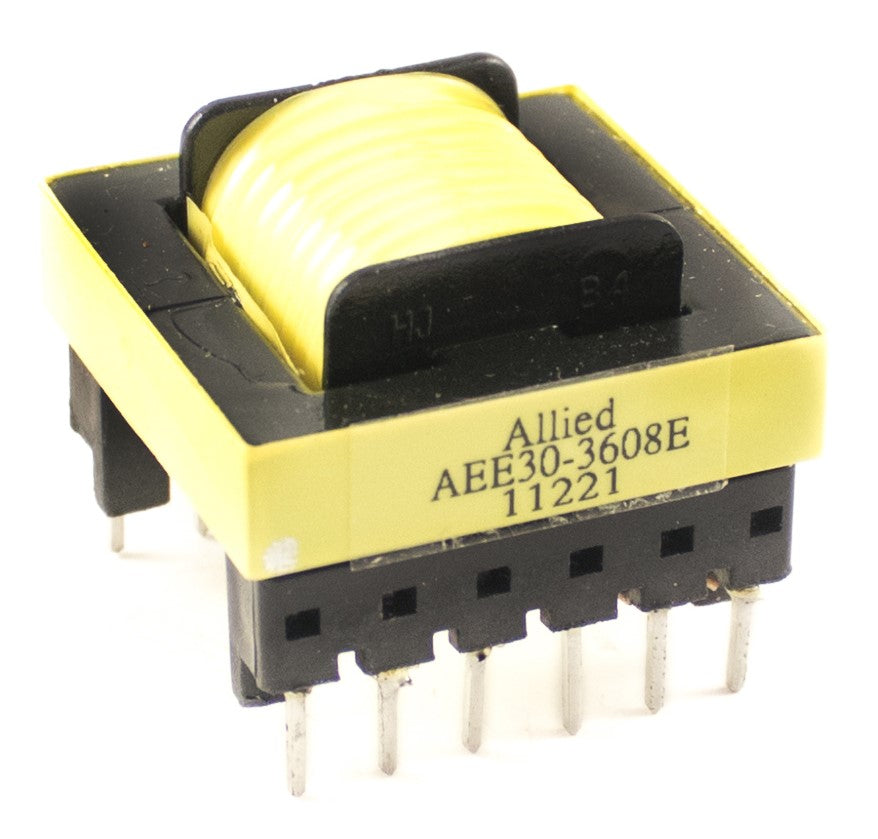

EE30 Horizontal Mount / AEE30-3608E

$0.00
  • EE30 Core Design
  • Through Hole Horizontal Mount
  • HiPot 3600VAC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.299 / 33.0
  • Width: 1.240 / 31.5
  • Geometry: EE30
  • Mounting Type: Through-Hole
  • Primary Inductance: 2.6mH
  • Turns Ratio: 1 : 0.05 : 0.08 : 0.08
  • Height: 0.945 / 24.0
    • Download Datasheet
