Allied Components

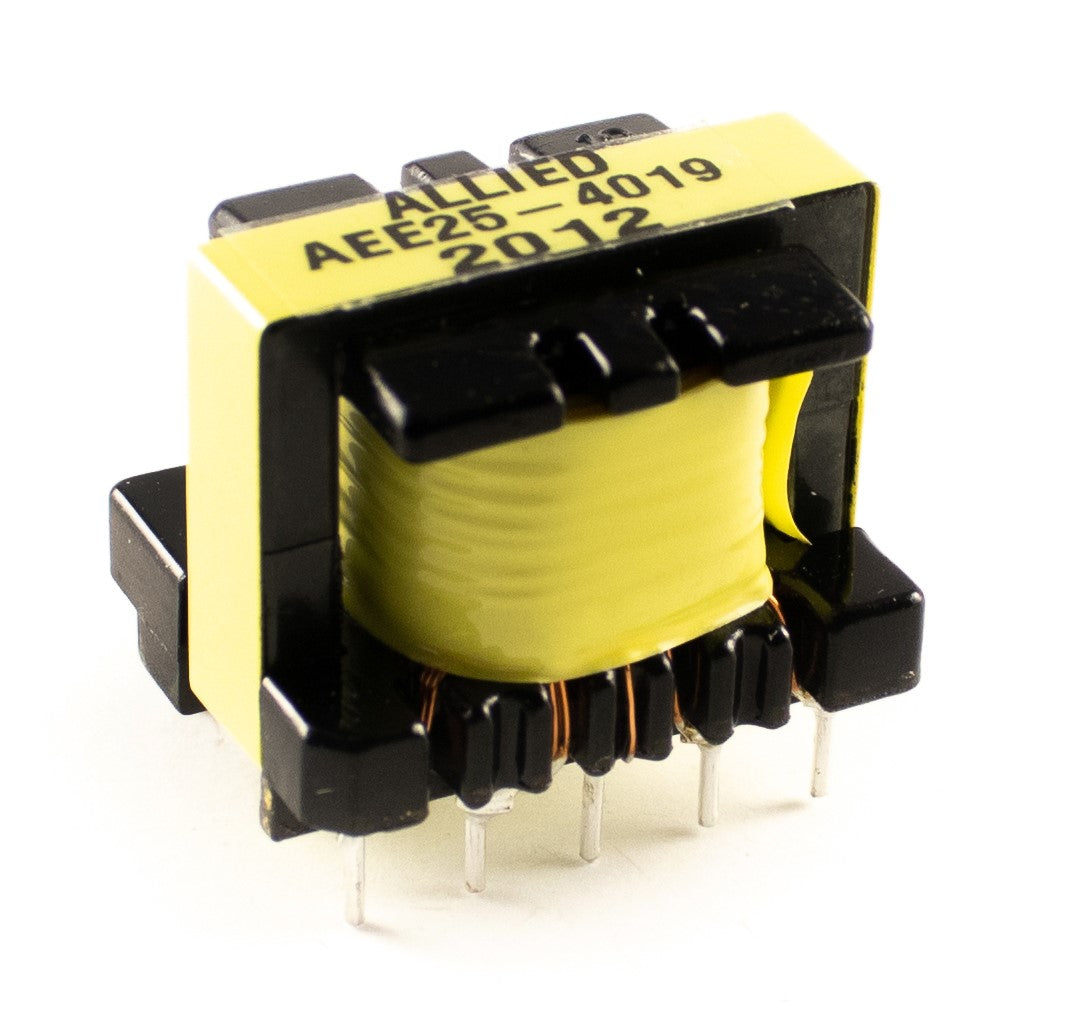

EE25 Vertical Mount / AEE25-4019

$0.00
  • EE25 Core design
  • Designed for use with Power Integrations tiny switch-111, TNY278, RDR-91 12V, 1A
  • Through Hole Vertical Mount
  • HiPot 3000VAC
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +85°C
  • Length: 1.083 / 27.5
  • Width: 0.866 / 22.0
  • Geometry: EE25
  • Mounting Type: Through-Hole
  • Primary Inductance: 1050µH
  • Turns Ratio: 1 : 0.1 : 0.1 : 0.125
  • Height: 0.886 / 22.5
    • Download Datasheet
