Allied Components

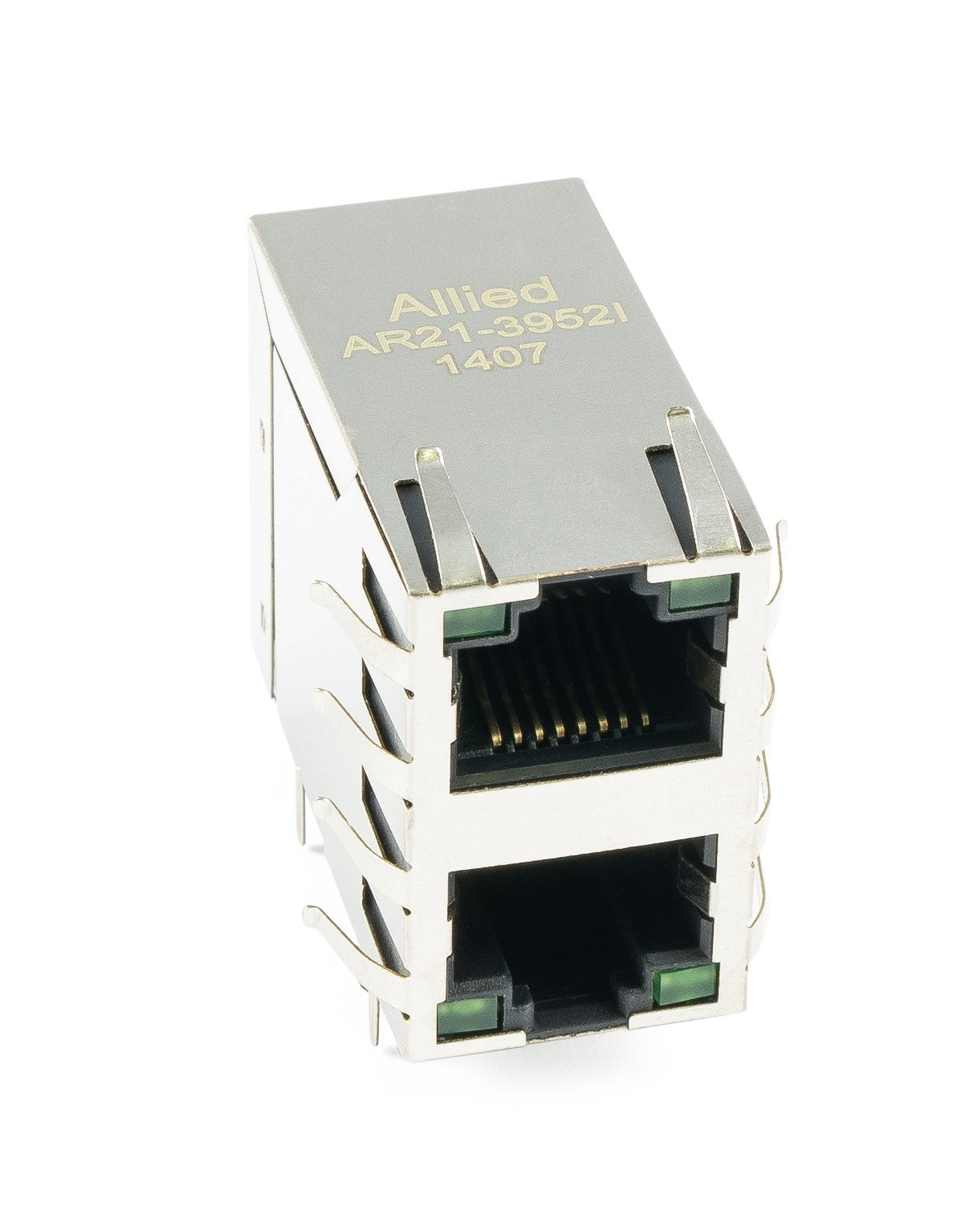

Stacked / 10/100 Base T / AR21-3952I

$0.00
  • 10/100 Base-T Ethernet Application
  • Impedance: 100OHMS
  • Transmit open circuit inductance (OCL): 350µH (MIN) @100KHz,0.1VRMS with 8mA DC Bias
  • RJ45 jack cavity conforms to FCC rules and regulations Part 68, SUB Part F
  • Standard operating temp: -40ºC to +85ºC
  • Storage temperature range: -40ºC to +85ºC
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Dual
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up & Down
  • LED: GG/GG
  • EMI Fingers: Yes
    • Download Datasheet
