Allied Components

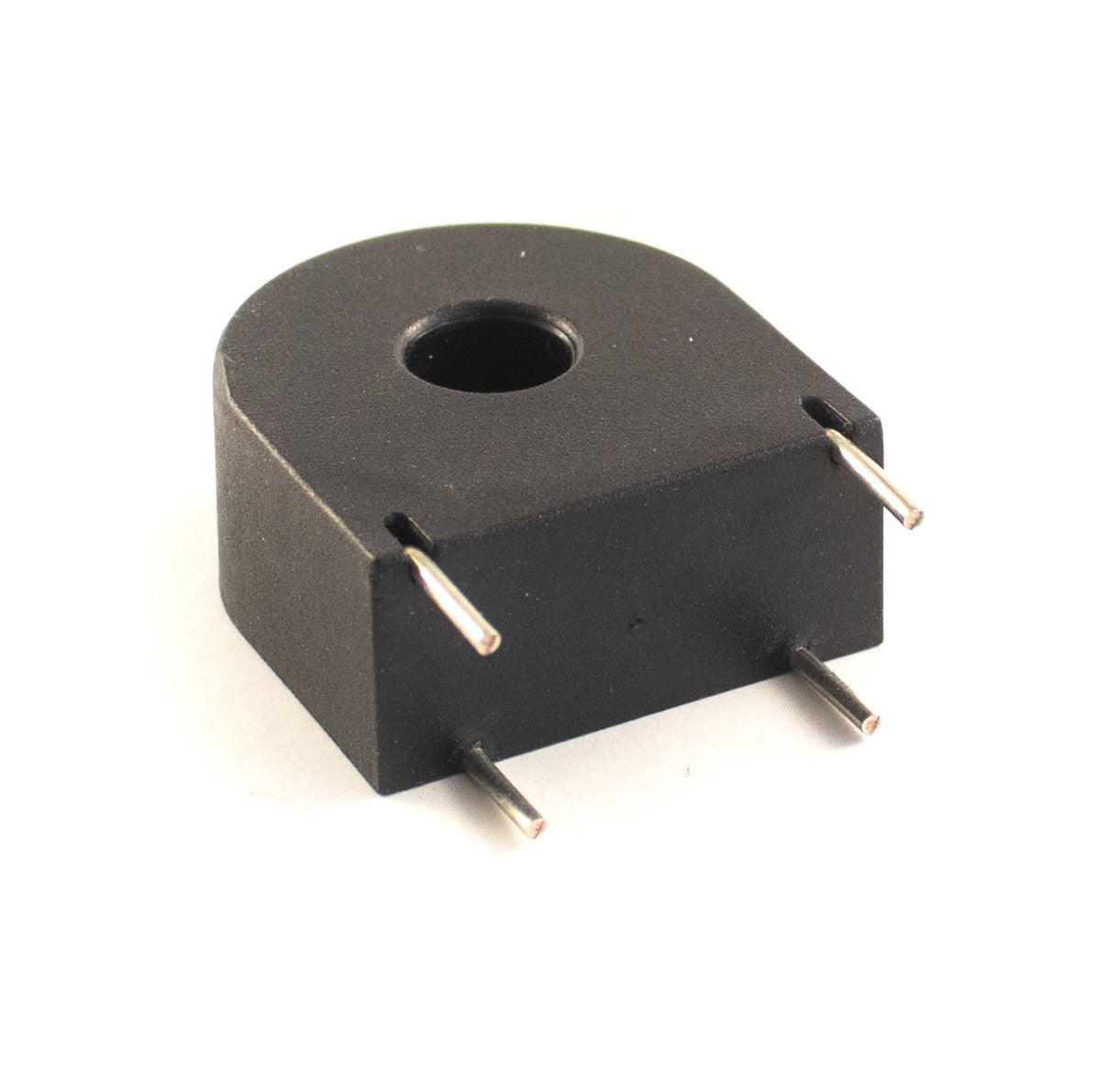

Through Hole / Vertical Mount / Encased / ACT07T03-5-002-01

$0.00
  • Mini-Precision Current Transformer
  • Good linearity over the entire range
  • Ideal for Current Measurement, Monitoring & Protection Applications
  • Operating Temp: -40ºC to +85ºC
  • Storage Temp: -45ºC to +90ºC
  • Dielectric Withstanding Voltage (Hi-pot): 4KVrms/1mA/1min
  • Insulation Resistance: DC500V/100MΩ min
  • Made with UL Approved Materials
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Length: .925 / 23.5
  • Width: .453 / 11.5
  • Height: .984 / 25.0
  • Output Current: 2mA
  • Primary Input Current: 5A
  • Turns Ratio: 1 : 2500
    • Download Datasheet
