Allied Components

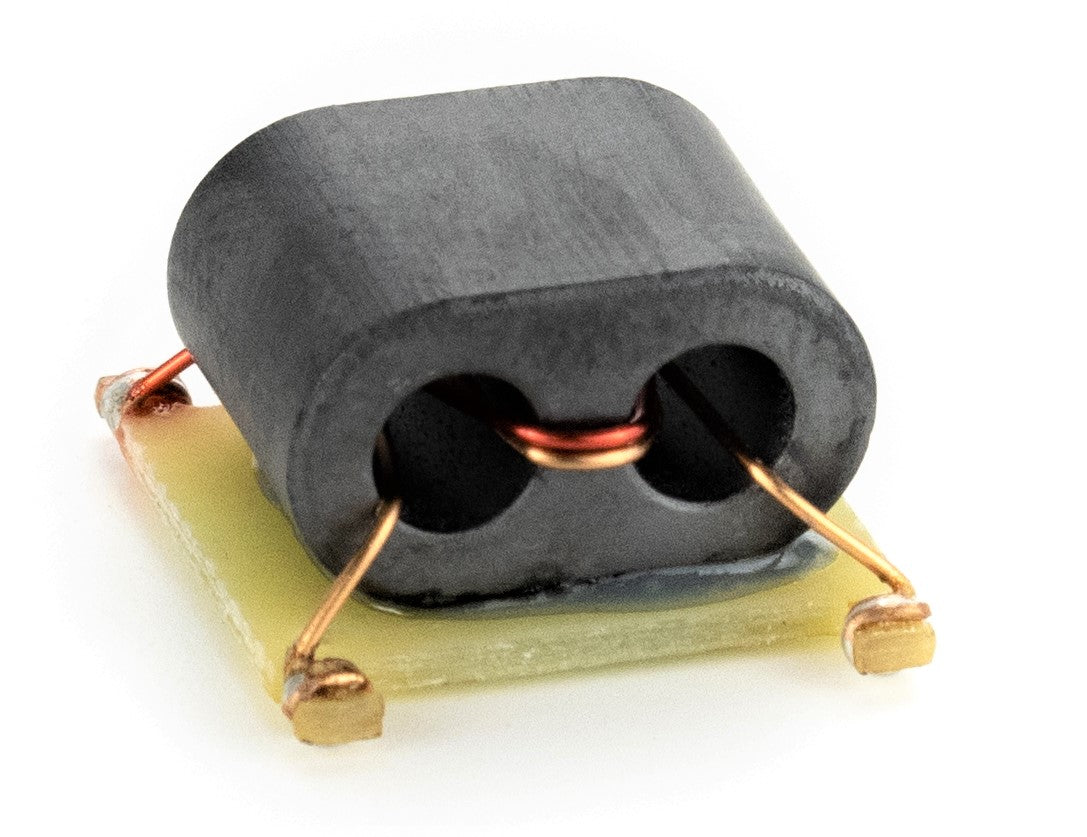

SMD / ABT-4730

$0.00
  • Double-aperture transformer for VHF/UHF
    receivers/transmitters and push-pull amplifiers
  • 260°C Reflow compatible
  • Operating Temp Range: -40ºC to +85ºC
  • Storage Temp Range: -45°C to +105°C
Part Number

Specifications
  • Pins: 4
  • Op Temp Range: -40°C to +85°C
  • Length: .661 / 16.8
  • Width: .591 / 15.0
  • Height: .413 / 10.5
  • Primary Inductance: 1.3µH
  • Turns Ratio: 2:1
  • Geometry: Balun Core
  • Mounting Type: SMD
    • Download Datasheet
