Allied Components

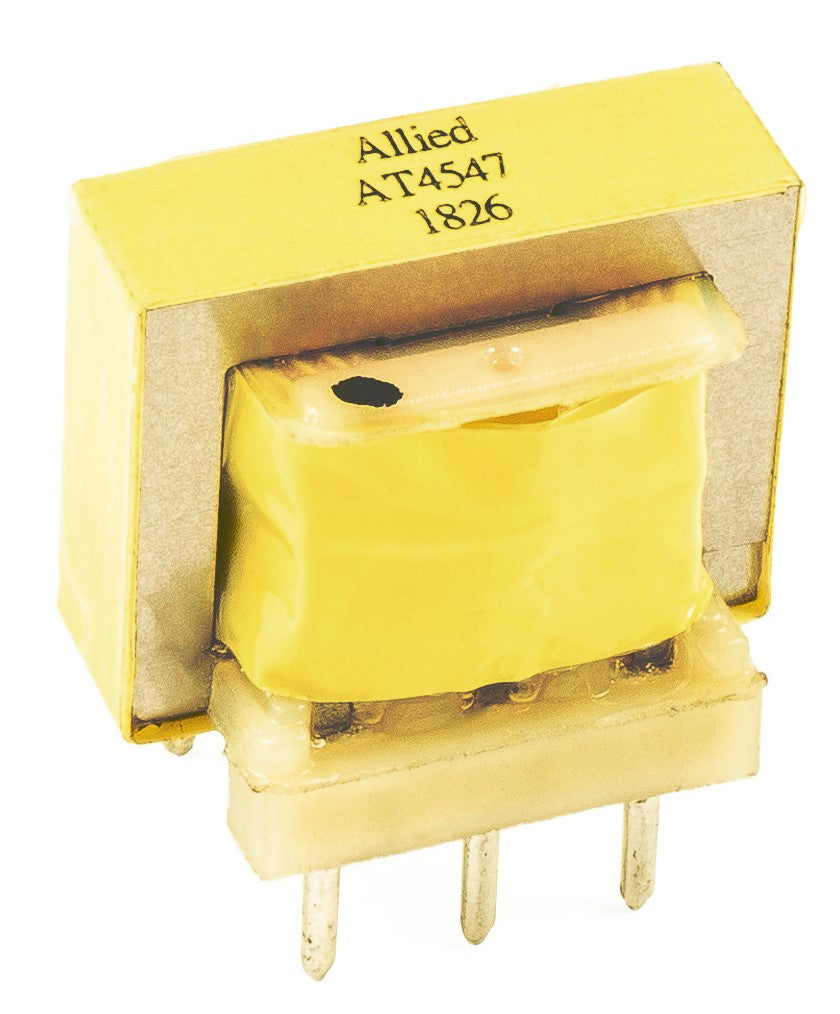

EI19 Vertical Mount / AT4547

$0.00
  • EI19 Core Design
  • 6 Pin Through Hole, Vertical Mount
  • For Data / Voice Coupling Applications
  • Operating Temperature Range: -0°C to +105°C
Part Number

Specifications
  • Pins: 6
  • Op Temp Range: 0°C to +105°C
  • Length: .812 / 20.62
  • Width: .715 / 18.16
  • Geometry: EI19
  • Mounting Type: Through-Hole
  • Primary Inductance: 1.6H
  • Turns Ratio: 1.35 : 1 : 1
  • Height: .740 / 18.80
    • Download Datasheet
