Allied Components

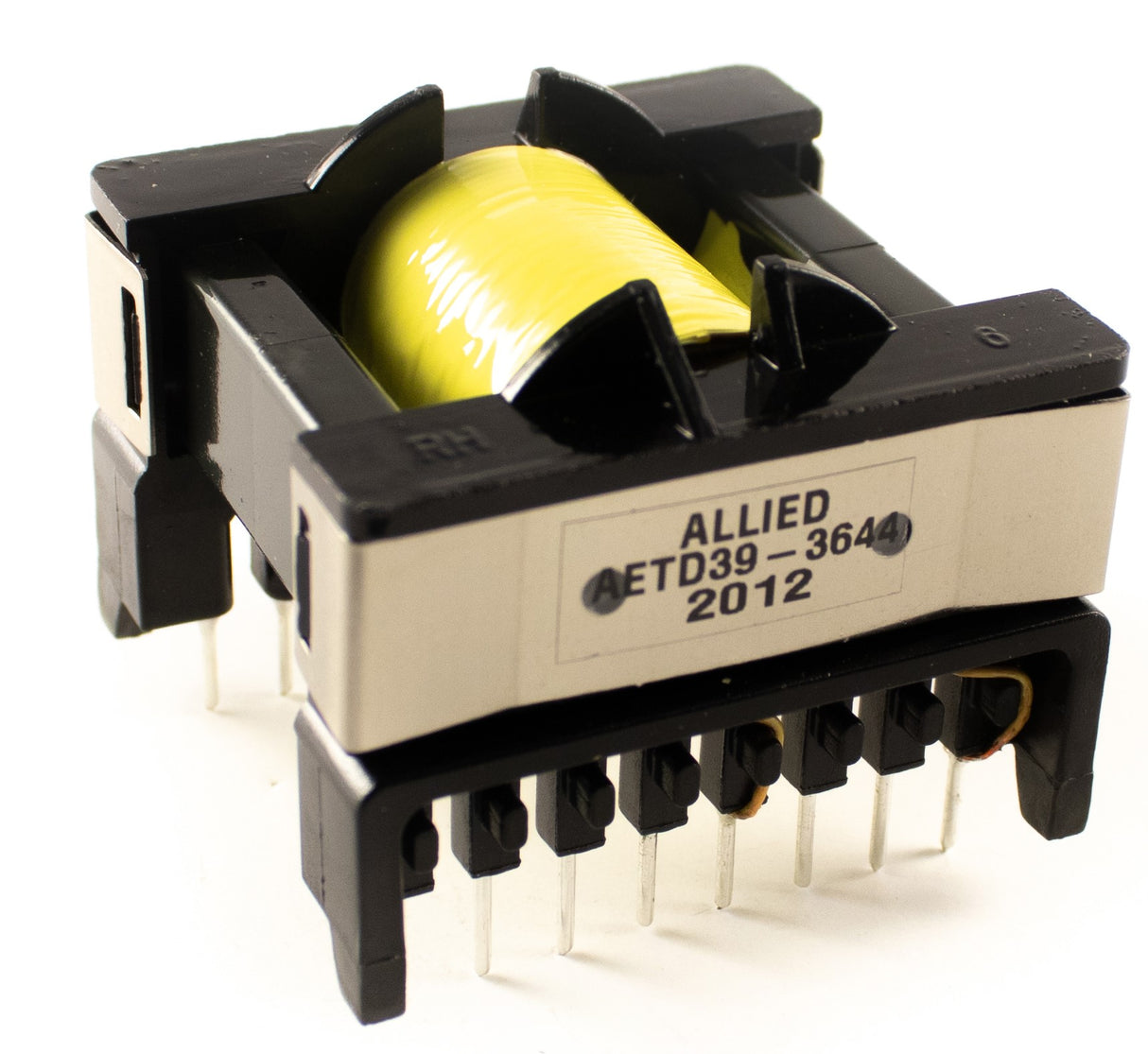

ETD39 Designs / AETD39-3644

$0.00
  • ETD39 Core Design
  • 16 Pin Through Hole, Horizontal Mount
  • Resonant Forward Transformer for Lighting Application
  • 240 Watt Power Rating
  • UL Class B 130 Insulation System UL File E349541
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: 1.811 / 46.0
  • Width: 1.811 / 46.0
  • Geometry: ETD39
  • Mounting Type: Through Hole
  • Primary Inductance: 600µH
  • Turns Ratio: 3.7 : 1 : 1 : 1 : 1
  • Height: 1.339 / 34.0
    • Download Datasheet
